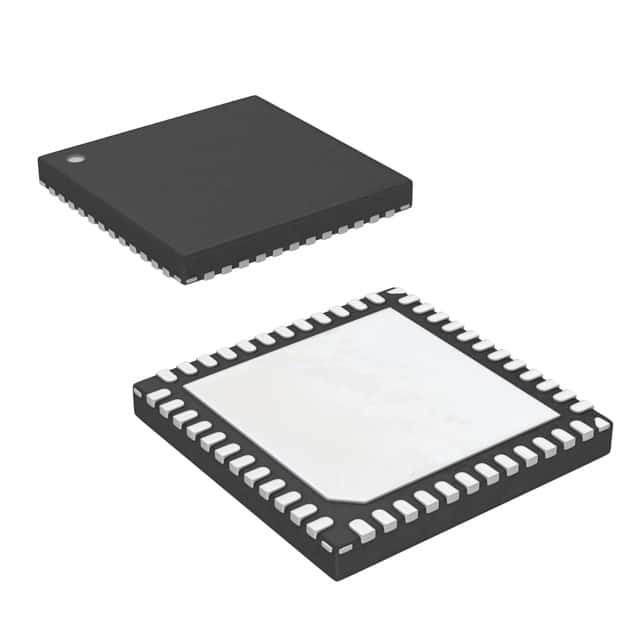

KAD5510P-12Q48
IC ADC 10BIT SAR 48QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation KAD5510P-12Q48 is a 10-bit successive approximation register (SAR) analog-to-digital converter. This component features a single differential analog input and a 1:1 S/H-ADC ratio. The KAD5510P-12Q48 offers a sampling rate of up to 125 MSPS. Data output is provided via parallel and LVDS interfaces. The device operates with analog and digital supply voltages between 1.7V and 1.9V. It is housed in a 48-QFN (7x7) package, designed for surface mounting. The operating temperature range is -40°C to 85°C. This converter is suitable for applications in telecommunications, test and measurement, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 125M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
