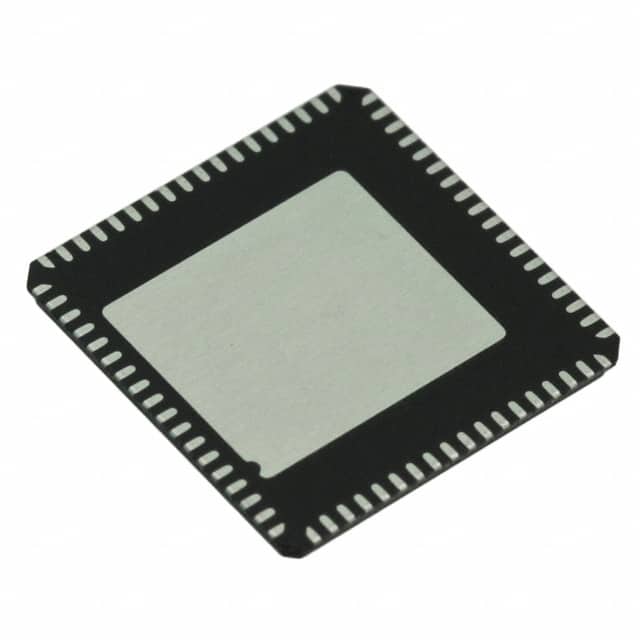

ISLA212P13IRZ
IC ADC 12BIT SAR 72QFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation ISLA212P13IRZ is a 12-bit, 130MSPS SAR Analog-to-Digital Converter. This component features a single differential input and a 1:1 S/H:ADC ratio. The device integrates an on-chip temperature sensor for environmental monitoring. Data is output via parallel LVDS interfaces. The ISLA212P13IRZ operates with analog and digital supply voltages between 1.7V and 1.9V, with an operating temperature range of -40°C to 85°C. It is supplied in a 72-pin QFN (10x10) package for surface mounting. This converter is suitable for applications in test and measurement, medical imaging, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tray |
| Package / Case | 72-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 130M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 72-QFN (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
