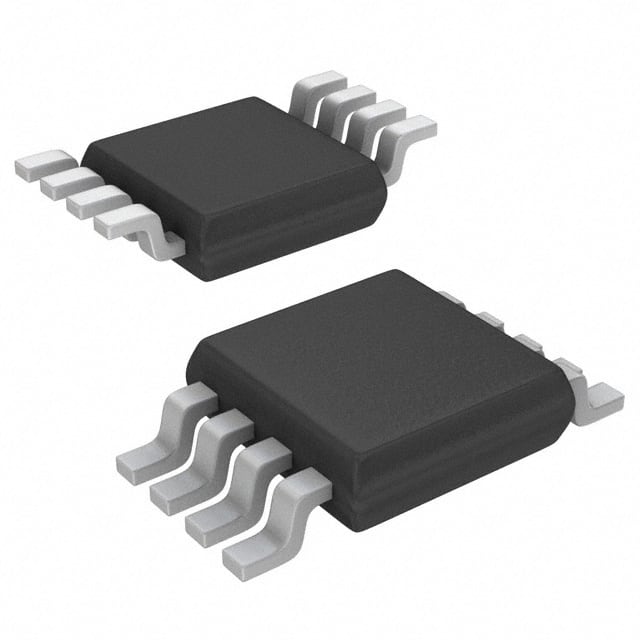

ISL267440IUZ-T
IC ADC 10BIT SAR 8MSOPManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's ISL267440IUZ-T is a 10-bit, 1 MSPS SAR Analog-to-Digital Converter. This device features a single analog input and supports an external reference. The ISL267440IUZ-T operates with analog and digital supply voltages ranging from 2.7V to 5.25V, with an operating temperature range of -40°C to 85°C. Its architecture is Successive Approximation Register (SAR), configured with Sample-and-Hold (S/H). The data interface utilizes SPI, and it is packaged in an 8-MSOP for surface mounting. This component finds application in industrial, automotive, and consumer electronics sectors requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-MSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
