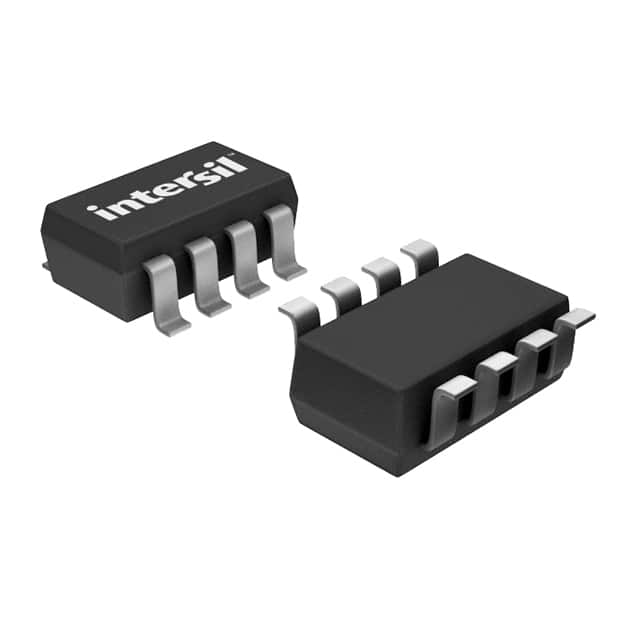

ISL267440IHZ-T7A
IC ADC 10BIT SAR SOT23-8Manufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's ISL267440IHZ-T7A is a 10-bit successive approximation (SAR) analog-to-digital converter (ADC) in a SOT-23-8 package. This single-channel device features an external reference and operates with analog and digital supply voltages ranging from 2.7V to 5.25V. The ISL267440IHZ-T7A supports a sampling rate of up to 1 MSPS and utilizes an SPI interface for data transfer. Its differential input type and 1:1 S/H-ADC ratio are suitable for applications requiring precise signal conversion. This component is commonly found in industrial automation, consumer electronics, and medical equipment. The product is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-8 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
