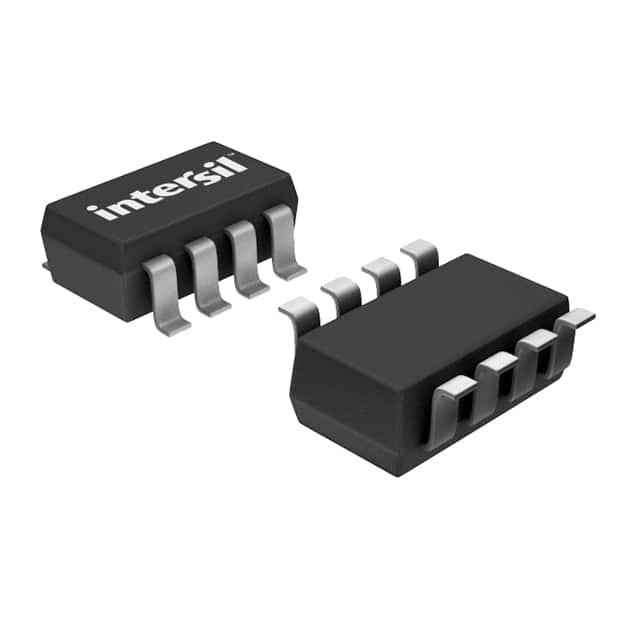

ISL267440IHZ-T
IC ADC 10BIT SAR SOT23-8Manufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Renesas Electronics Corporation ISL267440IHZ-T is a 10-bit successive approximation register (SAR) analog-to-digital converter (ADC). This single-channel device features a 1M sample per second sampling rate and is housed in a compact SOT-23-8 package. It supports a single differential input and requires an external voltage reference. The ISL267440IHZ-T operates across a wide analog and digital supply voltage range of 2.7V to 5.25V, with an operating temperature range of -40°C to 85°C. It communicates via a serial peripheral interface (SPI) and is supplied in tape and reel packaging. This component is suitable for applications in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-8 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
