ISL26712IRTZ-T7A
IC ADC 12BIT SAR 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation ISL26712IRTZ-T7A is a 12-bit Analog to Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This device offers a single input channel and a sampling rate of up to 1 MSPS. The ISL26712IRTZ-T7A supports an SPI data interface and an external reference. It operates with analog and digital supply voltages ranging from 2.7V to 5.25V. The component is packaged in an 8-TDFN (3x3) surface-mount configuration, supplied on tape and reel. This converter is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

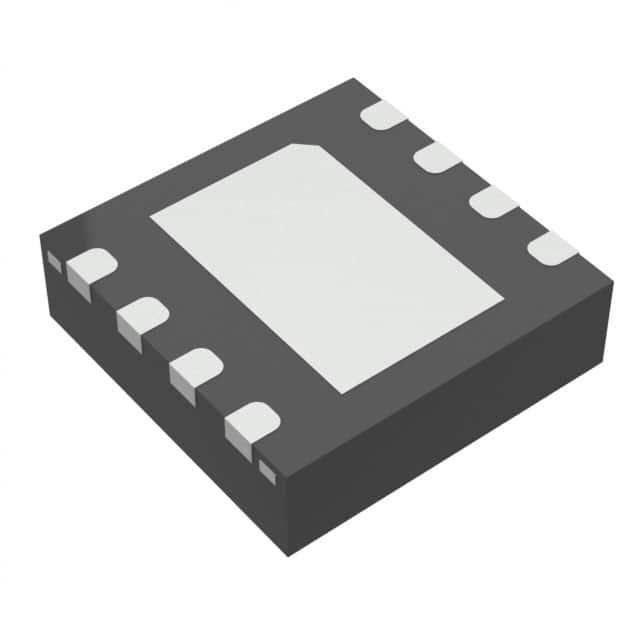

| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
