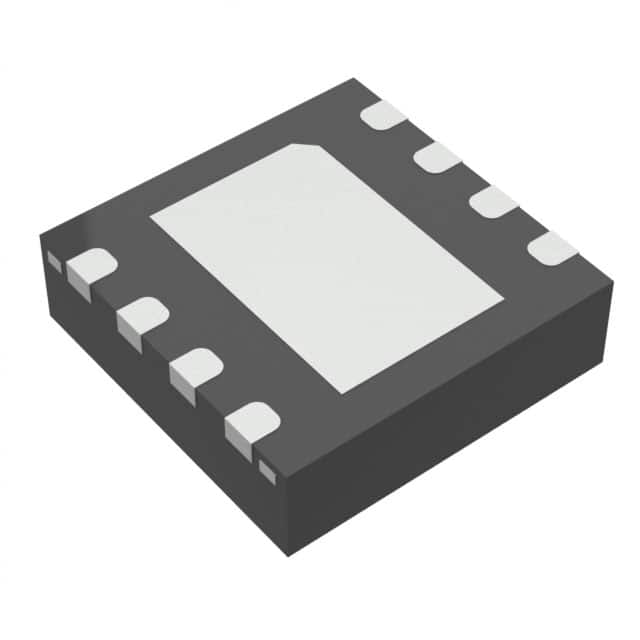

ISL26712IRTZ-T
IC ADC 12BIT SAR 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's ISL26712IRTZ-T is a 12-bit successive approximation register (SAR) analog-to-digital converter. This component features a single analog input and a 1:1 S/H-ADC ratio, operating with a sampling rate of up to 1 MSPS. The device supports external voltage references and utilizes an SPI data interface for communication. Designed for surface-mount applications, it is packaged in an 8-TDFN (3x3) with an exposed pad. The ISL26712IRTZ-T operates over an extended temperature range of -40°C to 85°C and accepts analog and digital supply voltages between 2.7V and 5.25V. This component finds application in industrial, medical, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
