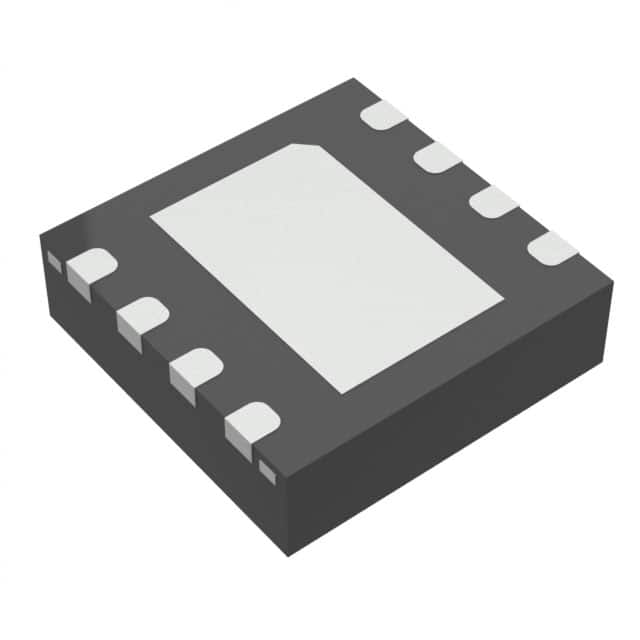

ISL26710IRTZ-T7A
IC ADC 10BIT SAR 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Renesas Electronics Corporation ISL26710IRTZ-T7A is a 10-bit, 1 MSPS successive approximation register (SAR) analog-to-digital converter (ADC). This device features a single input channel with a 1:1 S/H to ADC ratio and accepts an external reference. Its architecture is designed for efficient conversion with a 10-bit resolution. The ISL26710IRTZ-T7A utilizes a serial peripheral interface (SPI) for data communication. It operates with analog and digital supply voltages ranging from 2.7V to 5.25V and is specified for operation within an extended temperature range of -40°C to 85°C. The component is supplied in an 8-TDFN (3x3) package, suitable for surface mount assembly and delivered on tape and reel. This ADC is commonly employed in applications requiring precise analog signal digitization across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
