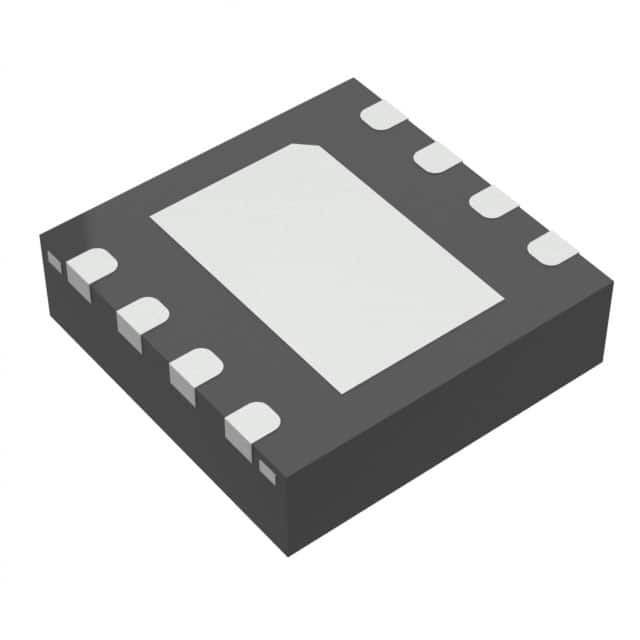

ISL26710IRTZ-T
IC ADC 10BIT SAR 8TDFNManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's ISL26710IRTZ-T is a 10-bit successive approximation (SAR) analog-to-digital converter (ADC). Featuring a single input channel and an integrated sample-and-hold (S/H) amplifier, this component achieves a sampling rate of up to 1 MSPS. It operates with analog and digital supply voltages ranging from 2.7V to 5.25V and utilizes an external reference. The ISL26710IRTZ-T communicates data via an SPI interface and is housed in an 8-TDFN (3x3) package, suitable for surface mounting. This ADC is commonly found in applications such as industrial automation, medical instrumentation, and consumer electronics where precise analog signal conversion is required. The device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 8-TDFN (3x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
