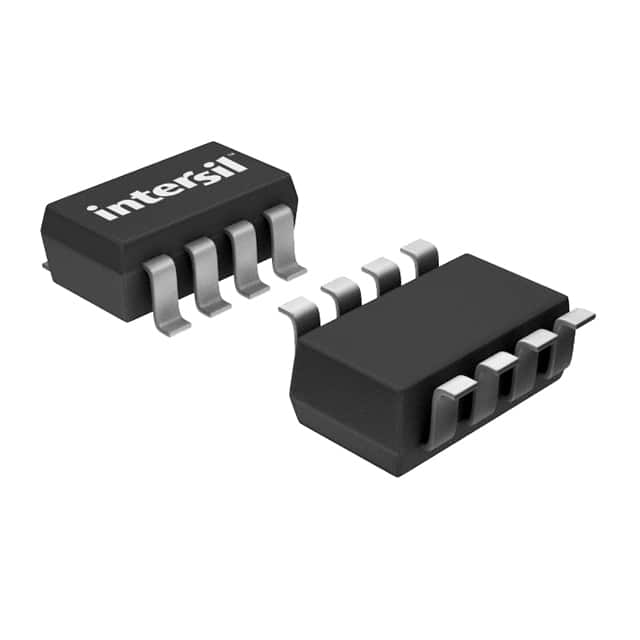

ISL26710IHZ-T
IC ADC 10BIT SAR SOT23-8Manufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Renesas Electronics Corporation's ISL26710IHZ-T is a 10-bit, 1-channel Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC). This component features a 1M sample per second sampling rate and an SPI data interface. It supports an external reference type and operates with analog and digital supply voltages ranging from 2.7V to 5.25V. The device is housed in an SOT-23-8 package, suitable for surface mount applications. Its architecture includes a Sample-and-Hold (S/H) amplifier for precise conversion. The ISL26710IHZ-T is commonly utilized in applications requiring precise analog-to-digital conversion, such as industrial automation, sensor interfacing, and portable instrumentation. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-8 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
