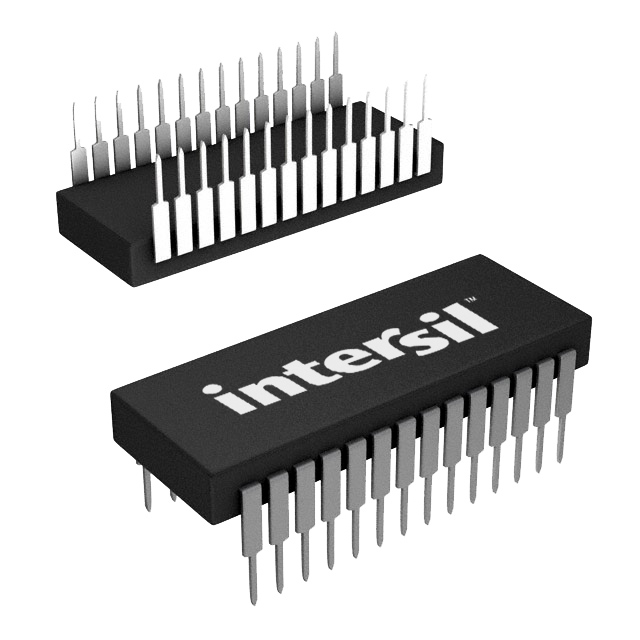

HI1-574AJD-5
IC ADC 12BIT SAR 28CDIPManufacturer: Renesas Electronics Corporation
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Renesas Electronics Corporation HI1-574AJD-5 is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers two input channels and a single ADC. The HI1-574AJD-5 utilizes a parallel data interface for efficient data transfer. It supports selectable addressing and provides a sampling rate of up to 40kSPS. The device operates with analog supply voltages ranging from ±11.4V to ±16.5V and a digital supply voltage of 5V. Available in a 28-lead Ceramic DIP (CDIP) package, suitable for through-hole mounting. This ADC is commonly found in industrial automation, test and measurement equipment, and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 75°C |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 40k |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 28-SBDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
