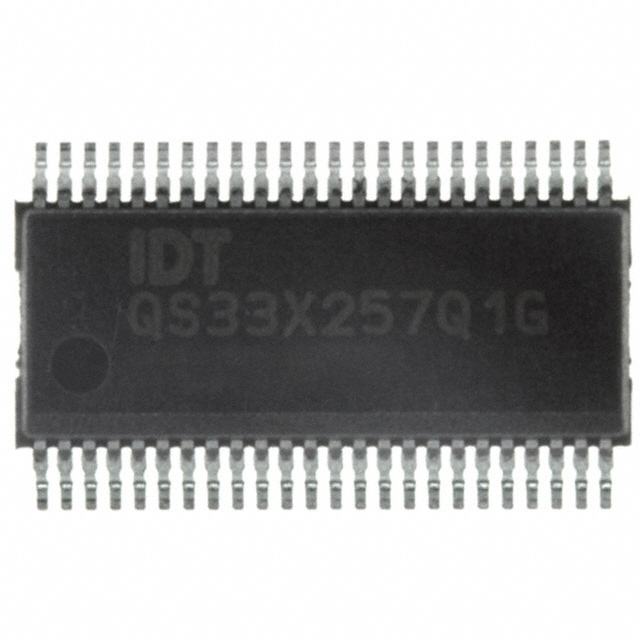

QS33X257Q1G8
IC MUX TRPL 8:4 15OHM 48QVSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
3 Circuit IC Switch 8:4 15Ohm 48-QVSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-FSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 15Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 48-QVSOP |
| Voltage - Supply, Single (V+) | 5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | 4PDT |
| Multiplexer/Demultiplexer Circuit | 8:4 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 4.8ns |
| Channel Capacitance (CS(off), CD(off)) | 10pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 3 |
