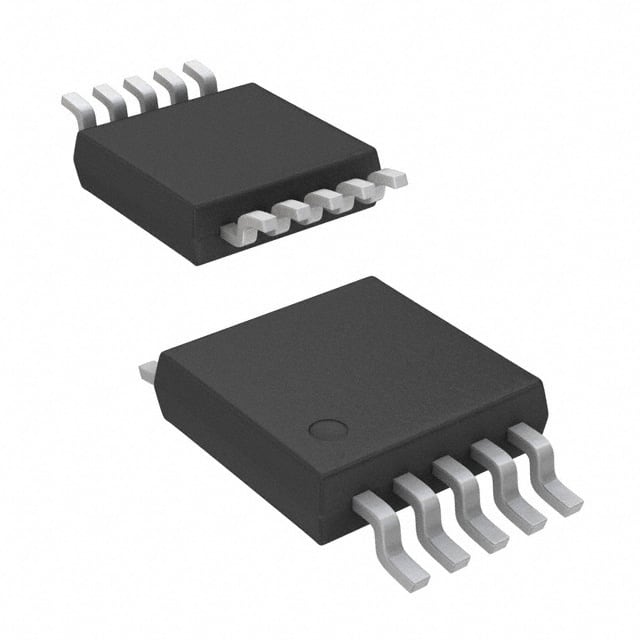

ISL84524IUZ-T
IC SWITCH SP4T X 1 150OHM 10MSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Renesas Electronics Corporation ISL84524IUZ-T is a single-circuit, 4:1 analog switch designed for high-performance applications. This SP4T device offers a maximum on-state resistance of 150 Ohms, with channel-to-channel matching of 2 Ohms. It features low charge injection of 0.8 pC and a channel capacitance of 4 pF (off) and 14 pF (off). Operating with a single supply voltage from 2V to 12V, the ISL84524IUZ-T exhibits a typical switch time of 150 ns (on) and 120 ns (off). It is supplied in a 10-MSOP package, suitable for surface mounting and delivered on tape and reel. This component is commonly utilized in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 150Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 10-MSOP |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 0.8pC |
| Crosstalk | -85dB @ 1MHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 2Ohm |
| Switch Time (Ton, Toff) (Max) | 150ns, 120ns |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
