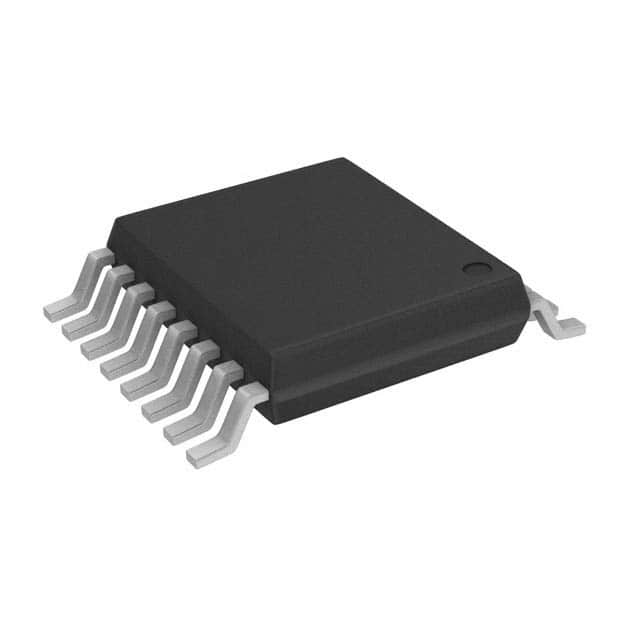

ISL84522IVZ
IC SW SPST-NOX4 100OHM 16TSSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation ISL84522IVZ is a Quad SPST-NO Analog Switch featuring 100 Ohm on-resistance. This 1:1 multiplexer/demultiplexer circuit is housed in a 16-TSSOP package, suitable for surface mount applications. Key specifications include a channel capacitance of 2pF (off-state), channel-to-channel matching of 1 Ohm, and charge injection of 1pC. The device exhibits -90dB crosstalk at 100kHz and a maximum leakage current of 1nA. Operating over a temperature range of -40°C to 85°C, the ISL84522IVZ supports single supply voltages from 2V to 12V and dual supply voltages from ±2V to ±6V. Typical switching times are 80ns (on) and 30ns (off). This component finds application in various industrial and consumer electronics, including data acquisition systems and signal routing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 1Ohm |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 2pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 4 |
Request a Quote
