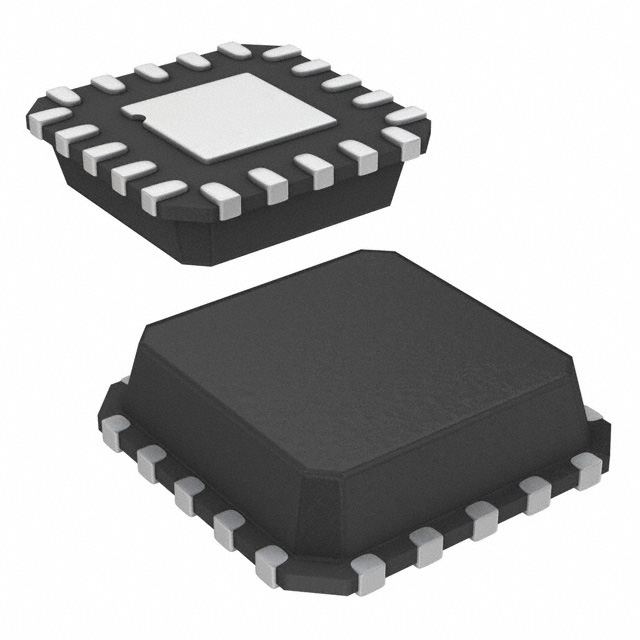

ISL84467IRTZ
IC SWITCH SPDTX4 400MOHM 16TQFNManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 2:1 400mOhm (Typ) 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 400mOhm (Typ) |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TQFN (3x3) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 248pC |
| Crosstalk | -85dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 50mOhm |
| Switch Time (Ton, Toff) (Max) | 33ns, 16ns |
| Channel Capacitance (CS(off), CD(off)) | 38pF |
| Current - Leakage (IS(off)) (Max) | 70nA |
| Number of Circuits | 4 |
