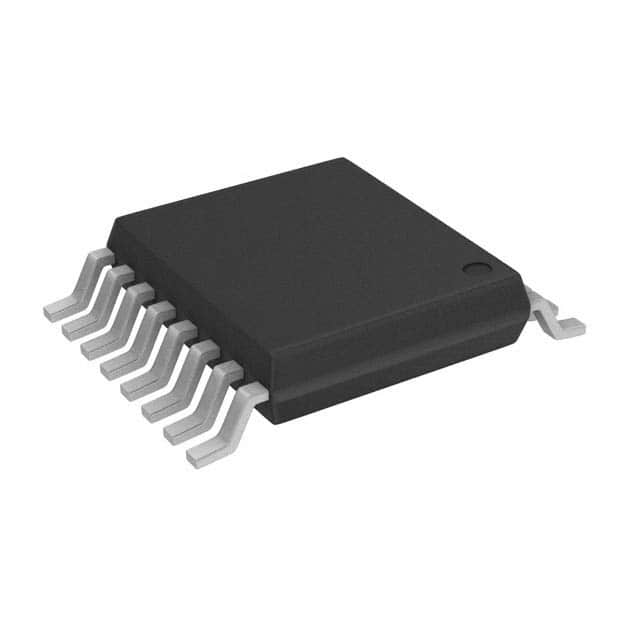

ISL84052IVZ-T7A
IC SWITCH SP4TX2 100OHM 16TSSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation's ISL84052IVZ-T7A is a dual 4:1 analog switch featuring a low on-resistance of 100 Ohms maximum. This component is designed for applications requiring efficient signal routing with minimal signal degradation. Key specifications include a channel capacitance of 3pF and 12pF (CS(off), CD(off)), a channel-to-channel matching (?Ron) of 6 Ohms maximum, and charge injection of 2pC. The device exhibits a typical off-state leakage current of 2pA. Operating across a single supply voltage range of 2V to 12V or a dual supply range of ±2V to ±6V, it supports a wide array of system configurations. The ISL84052IVZ-T7A is housed in a 16-TSSOP package, suitable for surface mounting. Switch times for this device are a maximum of 50ns turn-on and 40ns turn-off. This component is commonly utilized in consumer electronics, industrial control systems, and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Charge Injection | 2pC |
| Crosstalk | - |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 6Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 50ns, 40ns |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 2pA (Typ) |
| Number of Circuits | 2 |
