ISL54233IRUZ-TS2722
IC MUX DUAL 3:1 8OHM 12UTQFNManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation ISL54233IRUZ-TS2722 is a dual 3:1 analog multiplexer featuring low on-resistance of 8 Ohms maximum. This device supports a single supply voltage range of 2.7V to 4.6V and offers a -3dB bandwidth of 1.6GHz, making it suitable for high-frequency applications. Channel-to-channel matching (?Ron) is specified at 70mOhm, with channel capacitance (CS(off), CD(off)) at 3pF. Crosstalk is maintained at -36dB at 240MHz, and leakage current (IS(off)) is a maximum of 15nA. The component is housed in a 12-UTQFN (2.2x1.4) package and is supplied on tape and reel. This device finds application in consumer electronics and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 8Ohm |
| -3db Bandwidth | 1.6GHz |

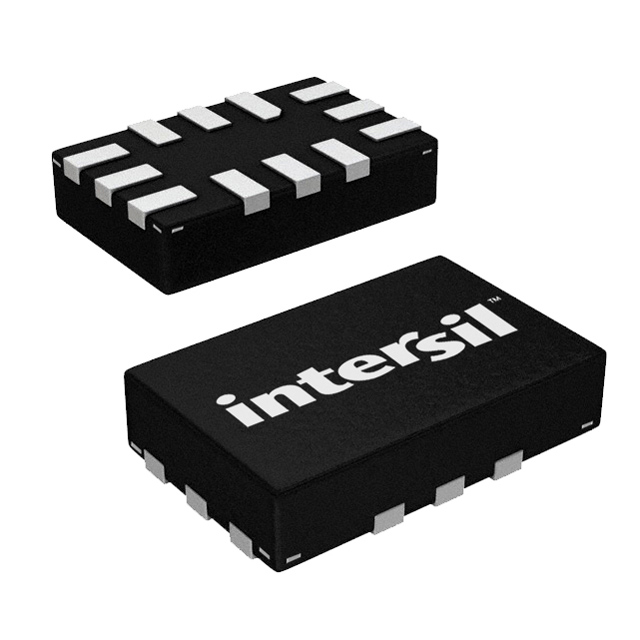

| Supplier Device Package | 12-UTQFN (2.2x1.4) |
| Voltage - Supply, Single (V+) | 2.7V ~ 4.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -36dB @ 240MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 70mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 3pF |
| Current - Leakage (IS(off)) (Max) | 15nA |
| Number of Circuits | 2 |
