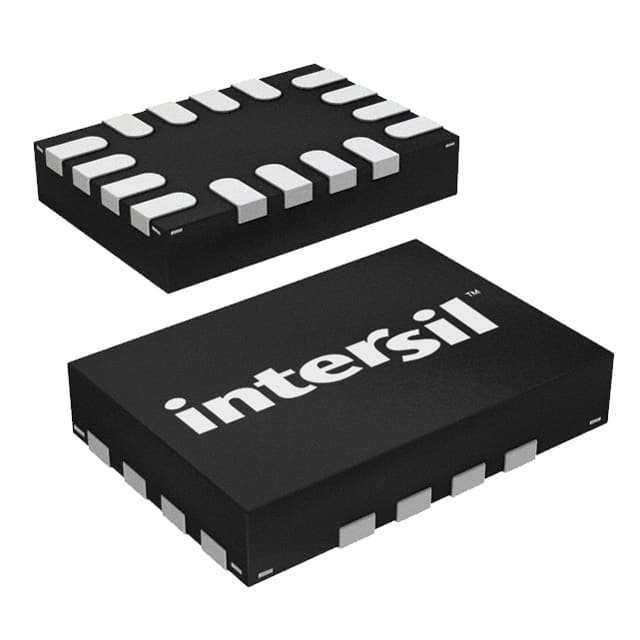

ISL54058IRUZ-T
IC SWITCH SP4TX2 750MOHM 16UTQFNManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 4:1 750mOhm 16-UTQFN (2.6x1.8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 750mOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-UTQFN (2.6x1.8) |
| Voltage - Supply, Single (V+) | 1.6V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | -100dB @ 100kHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 90mOhm |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | 44pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Number of Circuits | 2 |
