ISL43144IVZ

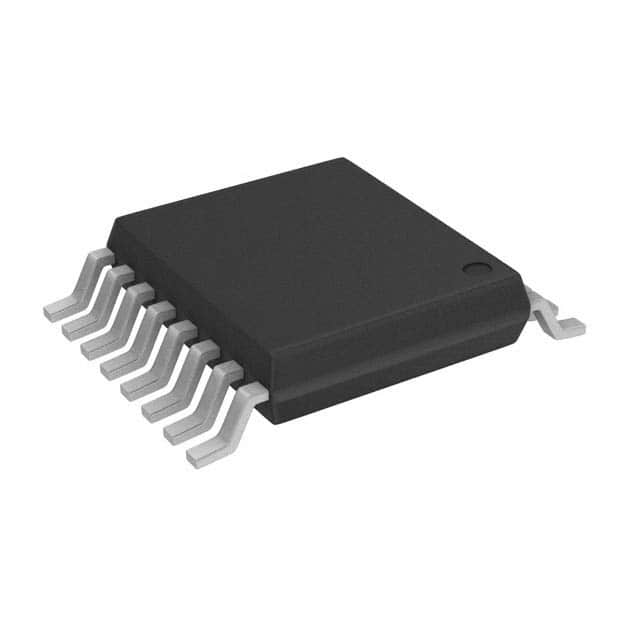

IC SW SPST-NOX4 25OHM 16TSSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation's ISL43144IVZ is a quad single-pole, single-throw (SPST) normally open analog switch. This 1:1 multiplexer/demultiplexer IC offers a maximum on-state resistance of 25 Ohms and channel-to-channel matching of 500 mOhms. Designed for surface mount applications, it is supplied in a 16-TSSOP package. The device supports single supply voltages from 2.7V to 12V and dual supply voltages from ±2.6V to ±6V. Operating across a temperature range of -40°C to 85°C, the ISL43144IVZ exhibits low leakage current of 100pA maximum and charge injection of 5pC maximum. Typical applications include signal routing in industrial control systems, medical equipment, and audio processing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 25Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.6V ~ 6V |
| Charge Injection | 5pC (Max) |
| Crosstalk | -89dB @ 1MHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 500mOhm |
| Switch Time (Ton, Toff) (Max) | 65ns, 50ns |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 26pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
