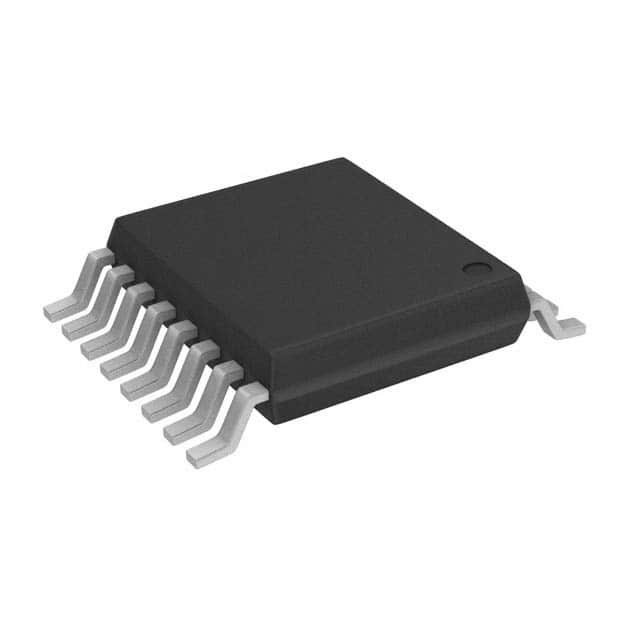

ISL43141IVZ
IC SW SPST-NOX4 65OHM 16TSSOPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation ISL43141IVZ is a 4-circuit, single-pole, single-throw (SPST), normally open analog switch. This device features a low on-resistance of 65 Ohms (Max) with excellent channel-to-channel matching of 2 Ohms. Designed for reliable operation, it offers a charge injection of 1pC and a crosstalk of -90dB at 100kHz. The switch operates over a wide voltage range, supporting single supply from 2.7V to 12V and dual supplies from ±2.6V to ±6V. With a switching time of 80ns (Ton) and 30ns (Toff), it is suitable for applications requiring fast signal routing. The ISL43141IVZ is available in a 16-TSSOP package suitable for surface mounting, with a channel capacitance of 7pF in the off state. This component finds application in various industries including consumer electronics, industrial automation, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 65Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.6V ~ 6V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 2Ohm |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 4 |
