ISL43141IBZ

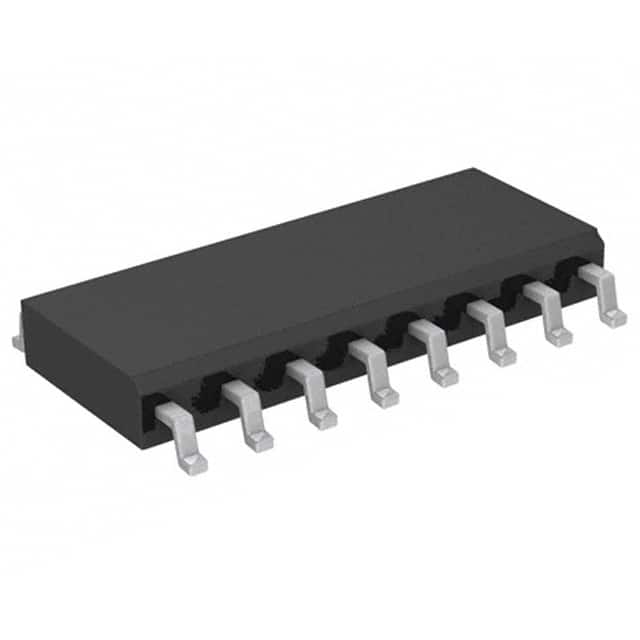

IC SWITCH SPST-NOX4 65OHM 16SOICManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation ISL43141IBZ is a quad, single-pole, single-throw (SPST) analog switch. This component features a 1:1 multiplexer/demultiplexer circuit with four independent switches, each offering a low on-state resistance of 65 Ohms maximum. The device supports single supply voltages from 2.7V to 12V and dual supply voltages from ±2.6V to ±6V. Key performance characteristics include a charge injection of 1pC, typical channel-to-channel matching of 2 Ohms, and a crosstalk of -90dB at 100kHz. Leakage current is specified at a maximum of 1nA. This surface mount component is housed in a 16-SOIC package and operates across a temperature range of -40°C to 85°C. The ISL43141IBZ finds application in various systems, including general-purpose signal routing and data acquisition.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 65Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.6V ~ 6V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 2Ohm |
| Switch Time (Ton, Toff) (Max) | 80ns, 30ns |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 4 |
