ISL43112IB-T
IC SWITCH SPST-NOX1 20OHM 8SOICManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation ISL43112IB-T is a single-pole, single-throw (SPST) normally open analog switch designed for efficient signal routing. This device features a low on-resistance of 20 Ohms maximum, with minimal variation across the operating voltage range. The ISL43112IB-T operates with dual supply voltages, ranging from ±1.5V to ±6V, and offers excellent performance characteristics including a typical charge injection of 7pC and channel capacitance of 13pF. It boasts fast switching times of 70ns turn-on and 45ns turn-off, coupled with a minimal leakage current of 1nA maximum. Packaged in an 8-SOIC (0.154", 3.90mm Width) surface-mount configuration and supplied on tape and reel, this component is suitable for applications in consumer electronics, industrial control, and telecommunications.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 20Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 8-SOIC |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±1.5V ~ 6V |
| Charge Injection | 7pC |
| Crosstalk | - |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 70ns, 45ns |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 13pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
Request a Quote
Clients Also Buy

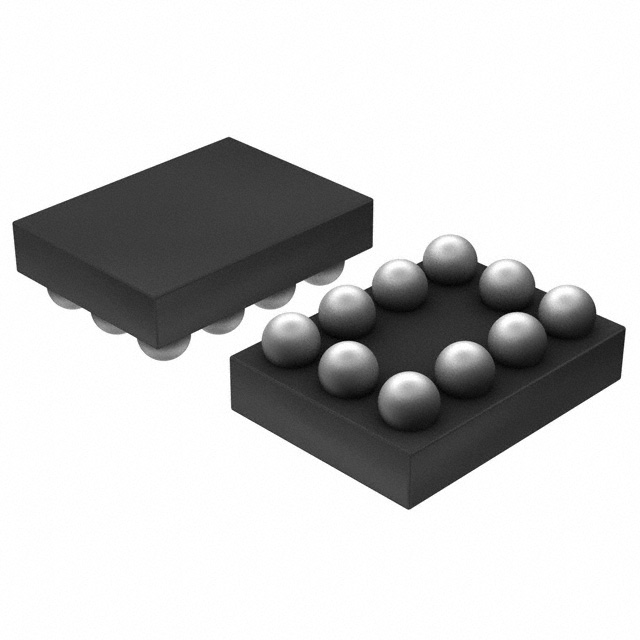

ISL84684IIZ-T
