HI3-0506A-5Z

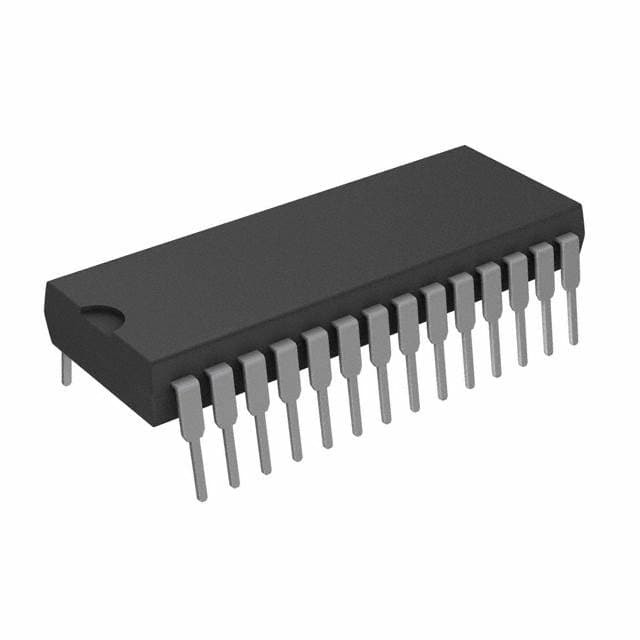

IC MUX 16:1 1.8KOHM 28DIPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Renesas Electronics Corporation HI3-0506A-5Z is a 16:1 analog multiplexer featuring a low on-state resistance of 1.8 kOhms maximum. This single-circuit device is housed in a 28-pin PDIP package and supports dual ±15V supply voltages. With a typical switch time of 300ns for both turn-on and turn-off, and a low off-state leakage current of 30pA, this component is suitable for applications requiring efficient signal routing. The HI3-0506A-5Z is designed for through-hole mounting and operates within a temperature range of 0°C to 75°C. Its typical channel capacitance values are 10pF (off) and 52pF (off). This component finds application in various industrial and commercial electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 75°C (TA) |
| On-State Resistance (Max) | 1.8kOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-PDIP |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Number of Circuits | 1 |
