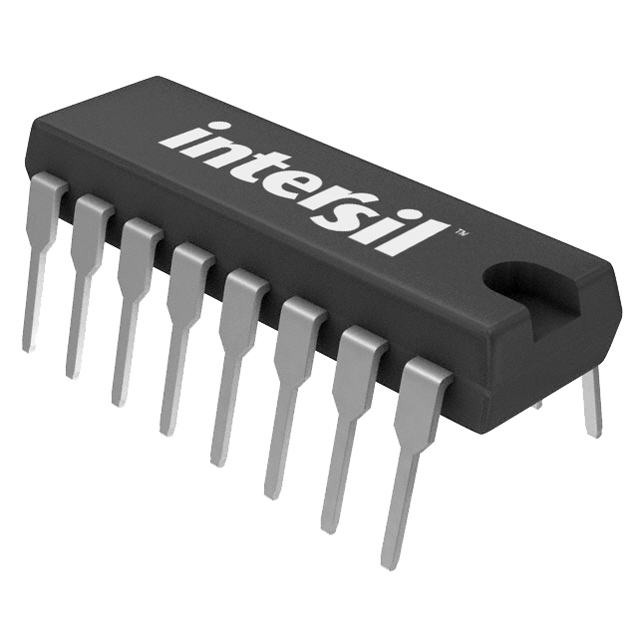

HI3-0201-5Z
IC SWITCH SPST-NCX4 80OHM 16DIPManufacturer: Renesas Electronics Corporation
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 1:1 80Ohm 16-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C ~ 75°C (TA) |
| On-State Resistance (Max) | 80Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-PDIP |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | 240ns, 500ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Number of Circuits | 4 |
