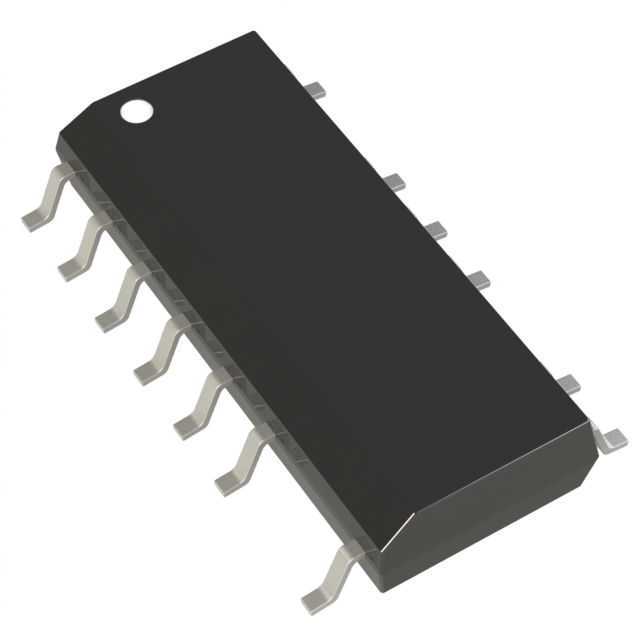

RAA2231814GSP#HA0
900V FLY-BACK REGULATOR, 13-LD SManufacturer: Renesas Electronics Corporation
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 50kHz ~ 100kHz 13-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 13 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Duty Cycle | 48% |
| Frequency - Switching | 50kHz ~ 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 900V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 18V |
| Supplier Device Package | 13-SOIC |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 12 V |
| Control Features | Frequency Control, Soft Start |
