2451-1965-100

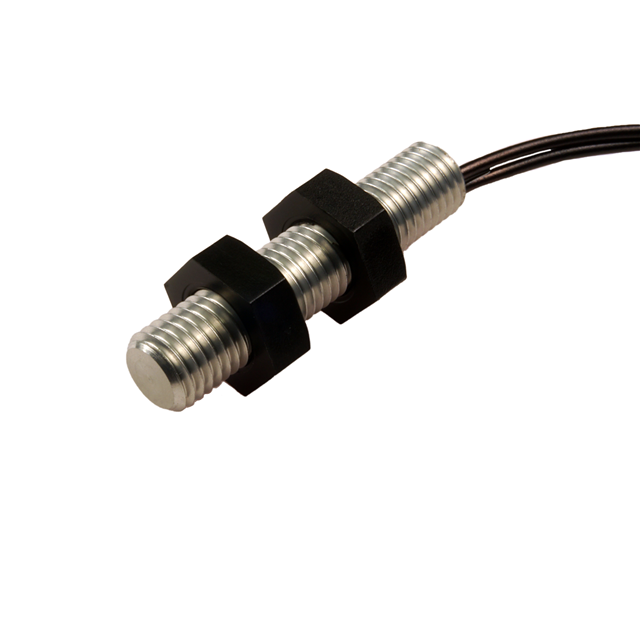

REED SENSOR SPST 40W 400V 2AManufacturer: Reed Switch Developments Corp.
Categories: Position, Proximity, Speed (Modules)
Quality Control: Learn More
Magnetic Reed Switch Magnet SPST-NO Wire Leads Module, Wire Leads
Additional Information
Series: 2451RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Retail PackageDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Retail Package |
| Package / Case | Module, Wire Leads |
| Output Type | SPST-NO |
| Type | Reed Switch |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Wire Leads |
| Voltage - Supply | 400VAC/DC |
| Must Operate | 20 ~ 25AT |
| Must Release | 15AT |
| Actuator Material | Magnet |
| Frequency | 300 Hz |
