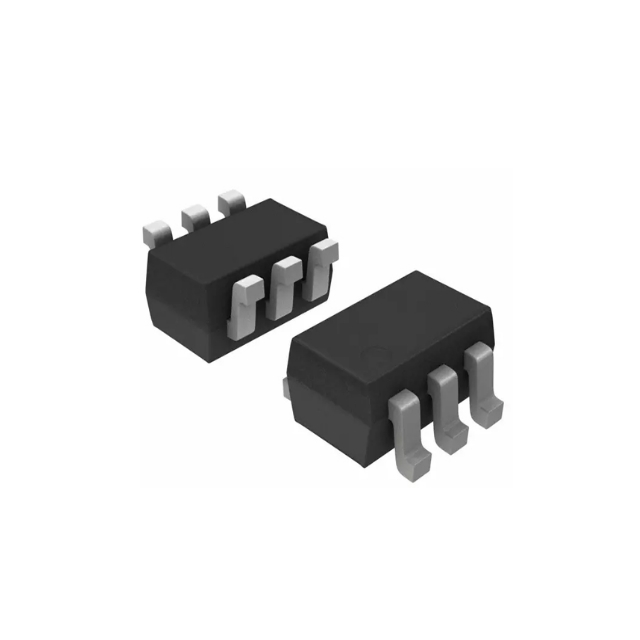

RMD0A8P20ES9
MOSFET 2P-CH 20V 0.8A SOT363-6LManufacturer: Rectron USA
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 800mA (Ta) 800mW (Ta) Surface Mount SOT-363-6L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 800mW (Ta) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 87pF @ 10V |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 500mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 0.0018C @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-363-6L |
