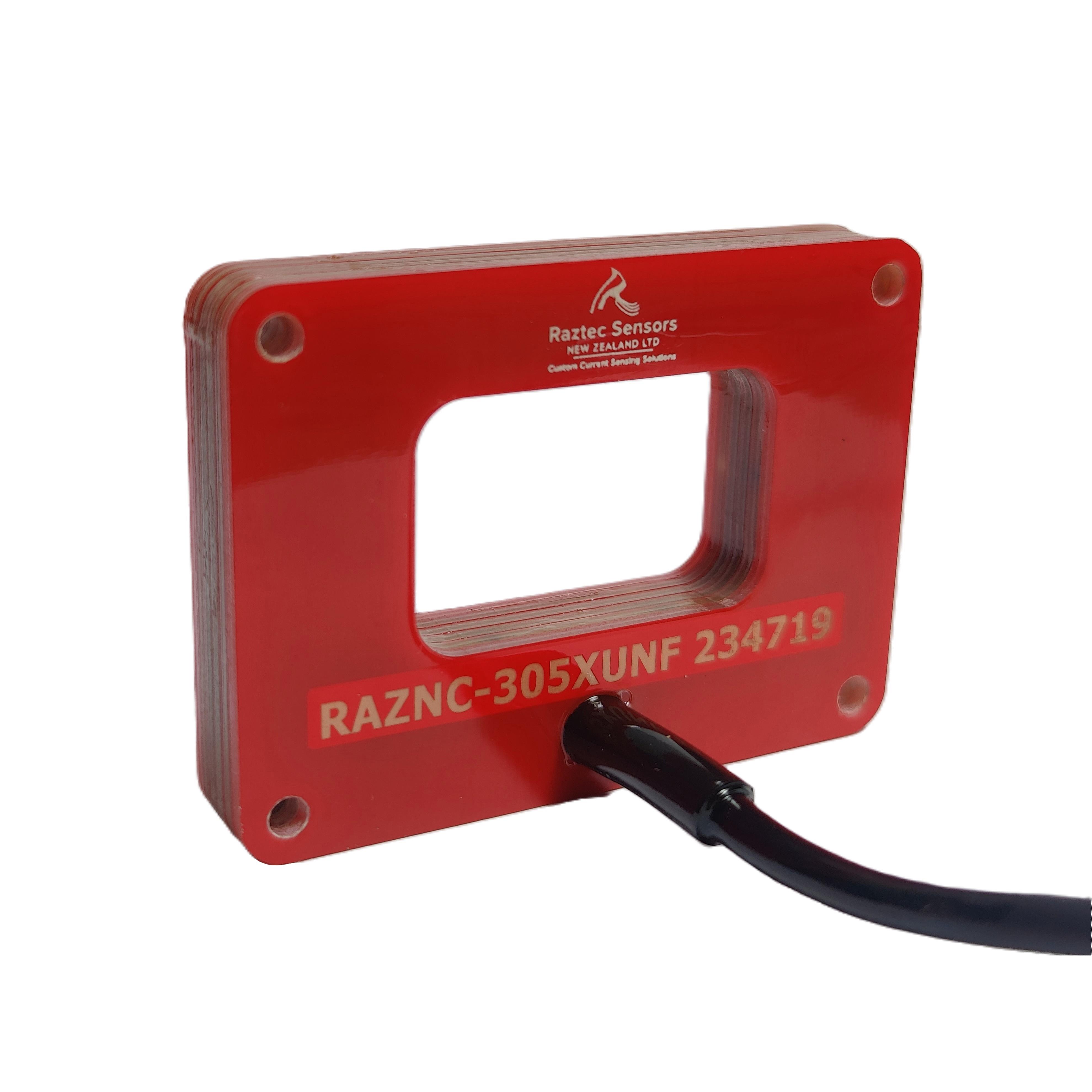

RAZNC-305XUNF
3,000A Current SensorManufacturer: Raztec Sensors
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 3000A 1 Channel Hall Effect, Open Loop Bidirectional
Additional Information
Series: RAZNCRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Retail PackageDownload Free CAD Model:
Technical Details:
| Packaging | Retail Package |
| Package / Case | - |
| Polarization | Bidirectional |
| Sensitivity | 0.75mV/A |
| Mounting Type | Free Hanging |
| Output | Analog Voltage |
| Frequency | 210kHz |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 100°C |
| Voltage - Supply | 5V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Open Loop |
| Linearity | ±0.2% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 100mA |
| Current - Sensing | 3000A |
| Supplier Device Package | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
Request a Quote
Clients Also Buy
RAZFL-105FMCG
1000A MOULDED CURRENT SENSOR
RAZFL-504MMCG
500A MOULDED CURRENT SENSOR

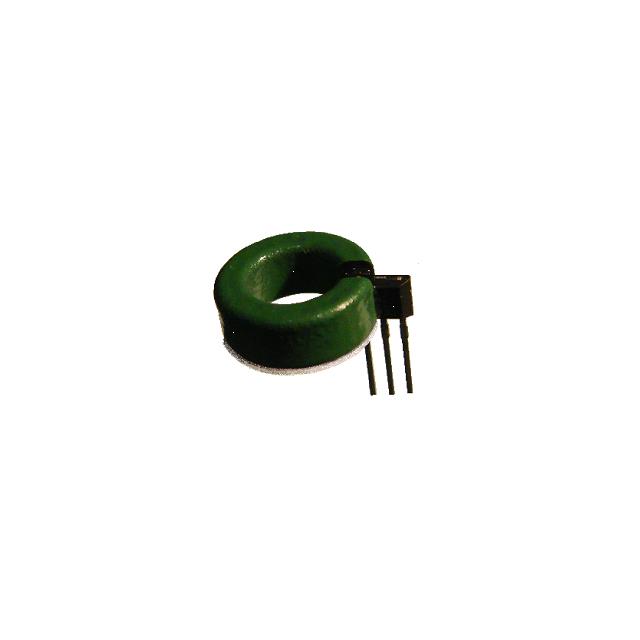

RAZC-204XUCN
