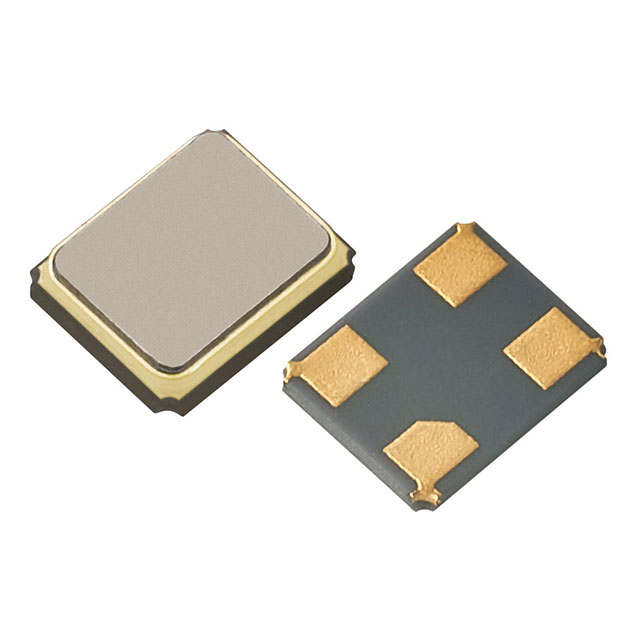

R2016-24.000-6-1015-TR-NS1
CRYSTAL 24.0000MHZ 6PF SMDManufacturer: Raltron Electronics
Categories: Crystals
Quality Control: Learn More
24 MHz ±10ppm Crystal 6pF 120 Ohms 4-SMD, No Lead
Additional Information
Series: R2016RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 6pF |
| Size / Dimension | 0.079"" L x 0.063"" W (2.00mm x 1.60mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -10°C ~ 60°C |
| Frequency Stability | ±15ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Ratings | - |
| Height - Seated (Max) | 0.020"" (0.50mm) |
| ESR (Equivalent Series Resistance) | 120 Ohms |
| Frequency | 24 MHz |
