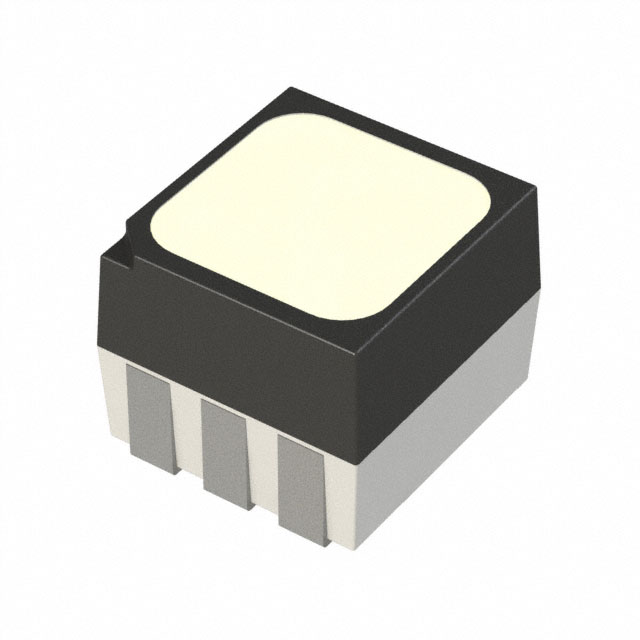

QBLP678-RGB1
LED RGB DIFFUSED 6PLCC SMDManufacturer: QT Brightek (QTB)
Categories: LED Indication - Discrete
Quality Control: Learn More
QT Brightek's QBLP678-RGB1 is a 6-PLCC surface-mount LED designed for robust indication applications. This RGB LED features independent control of red, green, and blue emitters, delivering dominant wavelengths of 622nm (Red), 522nm (Green), and 467nm (Blue). At a typical forward current of 20mA per color, it achieves luminous intensities of 700mcd (Red), 1600mcd (Green), and 440mcd (Blue). The forward voltages at this current are 2V for Red and 3.2V for Green and Blue. The diffused lens provides a wide 120° viewing angle from a 3.00mm square lens. This component is supplied in tape and reel packaging and is commonly utilized in automotive lighting, industrial controls, and consumer electronics for status indication and visual feedback.
Additional Information
Series: QBLP678RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=QBLP678-RGB1&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PLCC |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.50mm L x 3.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 700mcd Red, 1600mcd Green, 440mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.2V Green, 3.2V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 2.80mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 622nm Red, 522nm Green, 467nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | 3.00mm |
