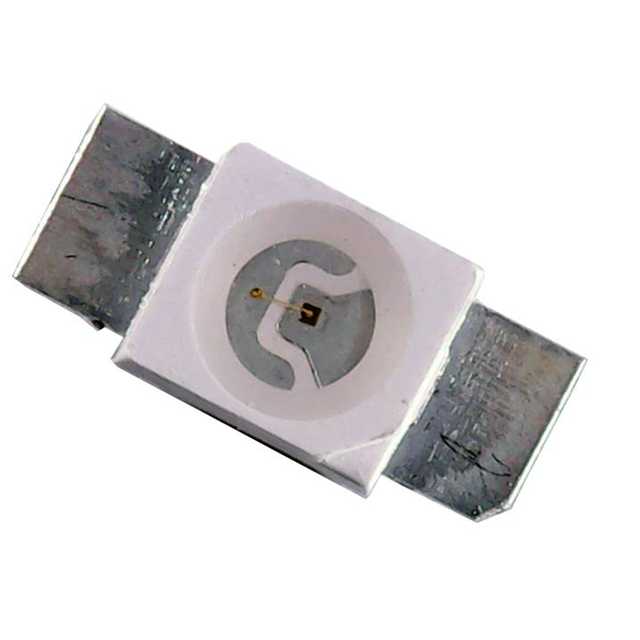

QBLP670R-R
LED RED CLR 2PLCC SMD BOTTOM ENTManufacturer: QT Brightek (QTB)
Categories: LED Indication - Discrete
Quality Control: Learn More
QT Brightek QBLP670R-R is a red, 623nm LED designed for surface mount applications with bottom entry. This component features a clear, colorless lens with a round, flat-top style, measuring 2.40mm in diameter. The LED is housed in a 2-SMD, Flat Leads package, specifically a 2-PLCC, with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.05mm. It offers a typical forward voltage of 2V and a current rating of 20mA for testing, producing a luminous intensity of 760mcd. The viewing angle is 120°, providing broad illumination. This LED is commonly utilized in industrial automation and consumer electronics for status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: QBLP670RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=QBLP670R-R&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Flat Leads |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 760mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.05mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 623nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
