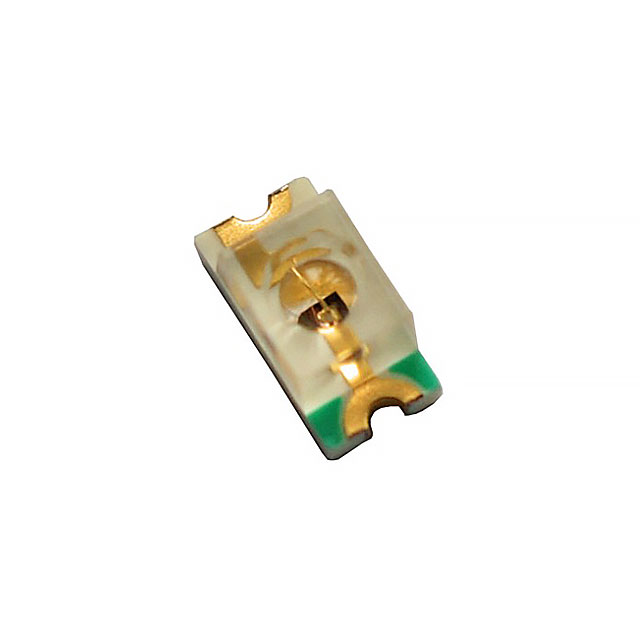

QBLP651-S1
LED RED CLEAR 1206 SMDManufacturer: QT Brightek (QTB)
Categories: LED Indication - Discrete
Quality Control: Learn More
QT Brightek (QTB) QBLP651-S1 is a red, 640nm LED, designed for discrete indication applications. This 1206 (3016 Metric) SMD component features a clear, colorless lens with a round, flat top design, measuring 1.10mm in diameter. It offers a typical forward voltage of 2V and a luminous intensity of 40mcd at a test current of 20mA. The LED has a viewing angle of 40° and is supplied in a 3.00mm L x 1.50mm W package. Its surface mount configuration and compact dimensions make it suitable for use in various industrial and consumer electronics, including telecommunications and automotive systems. The QBLP651 series component is provided on tape and reel for automated assembly processes.
Additional Information
Series: QBLP651RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=QBLP651-S1&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3016 Metric) |
| Color | Red |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 1.10mm Dia |
