QBLP1515-IW5-NW
LED WHITE/NEUTRAL DIFF 4PLCC SMDManufacturer: QT Brightek (QTB)
Categories: LED Indication - Discrete
Quality Control: Learn More
QT Brightek (QTB) QBLP1515-IW5-NW is a neutral white LED from the QBLP1515 series, offering a 4000K correlated color temperature. This discrete LED is housed in a 4-PLCC package, designed for surface mounting with a 4-SMD, J-Lead footprint. It features a diffused lens for broad illumination, providing a typical luminous intensity of 490mcd at a forward current of 5mA. The forward voltage is rated at 2.9V (typical). With a wide viewing angle of 120°, this component is suitable for various indication applications across industries such as consumer electronics, industrial automation, and medical devices. The component is supplied on tape and reel (TR) for high-volume manufacturing. Its compact dimensions of 1.60mm L x 1.50mm W and a maximum height of 1.20mm make it ideal for space-constrained designs.
Additional Information
Series: QBLP1515RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=QBLP1515-IW5-NW&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, J-Lead |
| Color | White, Neutral |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 490mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 120° |
| Height (Max) | 1.20mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | 4000K |
| Supplier Device Package | 4-PLCC |
| Lens Transparency | Diffused |
| Lens Style | Square with Flat Top |
| Lens Size | - |
Request a Quote
Clients Also Buy

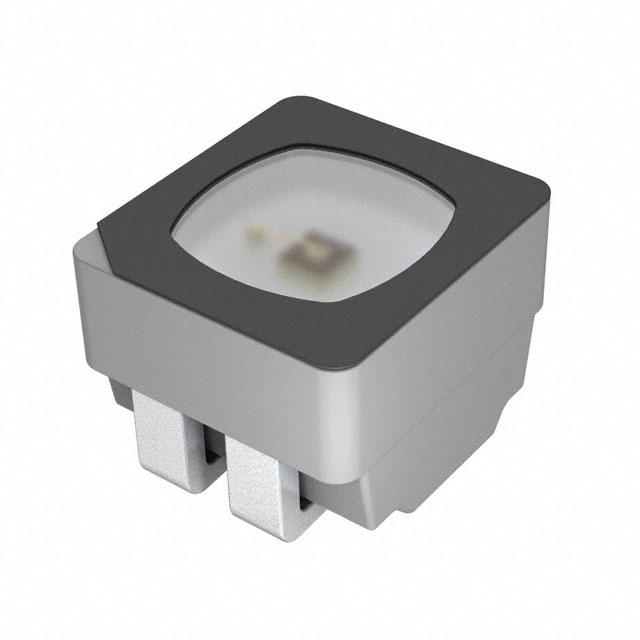

QBLP1515-IG5
