QBHP684UE-IBV
LED BLUE 455NM SMDManufacturer: QT Brightek (QTB)
Categories: LED Color Lighting
Quality Control: Learn More

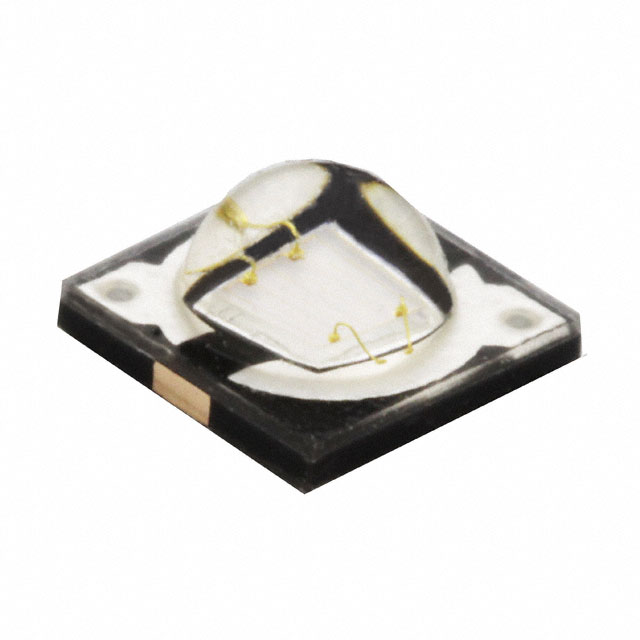

QT Brightek (QTB) QBHP684U-XXV series blue LED, part number QBHP684UE-IBV. This 1414 (3535 Metric) SMD component offers a typical luminous flux of 34lm at a forward voltage of 3.6V and a test current of 700mA. The peak wavelength is 455nm (450nm ~ 460nm), with a lumens per watt rating of 13 lm/W at the test current. Designed for surface mounting, the LED measures 0.142 inches (3.60mm) square with a maximum seated height of 0.075 inches (1.90mm). It is supplied on tape and reel (TR). This component is suitable for applications in general lighting and automotive illumination.
Additional Information
Series: QBHP684U-XXVRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&mpn=QBHP684UE-IBV&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | Blue |
| Wavelength | 455nm (450nm ~ 460nm) |
| Size / Dimension | 0.142"" L x 0.142"" W (3.60mm x 3.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.6V |
| Current - Test | 700mA |
| Viewing Angle | - |
| Current - Max | 700mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 13 lm/W |
| Height - Seated (Max) | 0.075"" (1.90mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 34lm (Typ) |
Request a Quote
Clients Also Buy
QBD40IB1
DISPLAY 7SEG 0.4"" DBL BLUE 10DIP

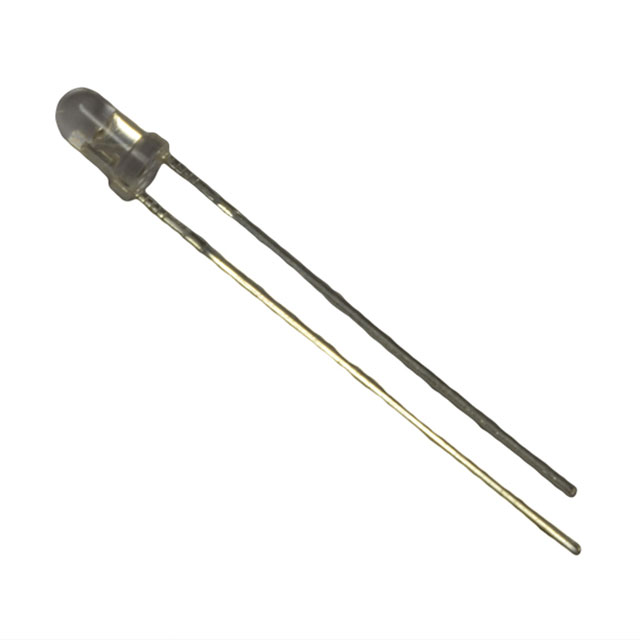

QBEC5120
LAMP IR 3MM 30MW 50MA 940NM

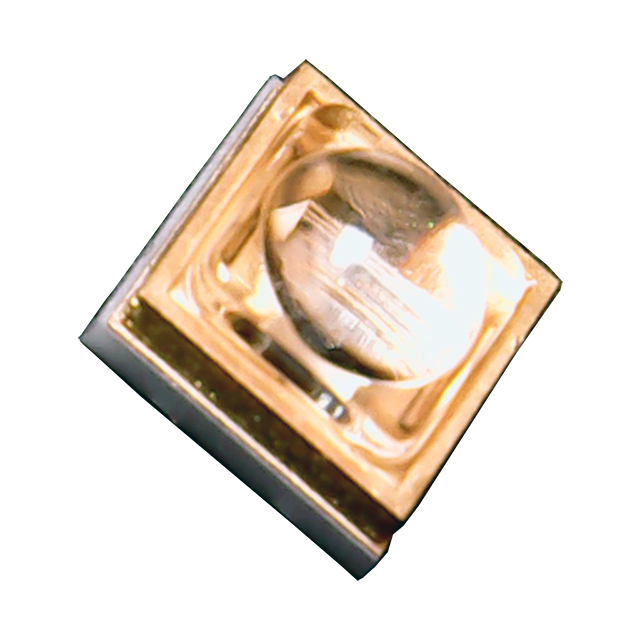

QBHP4545E-UV265H
