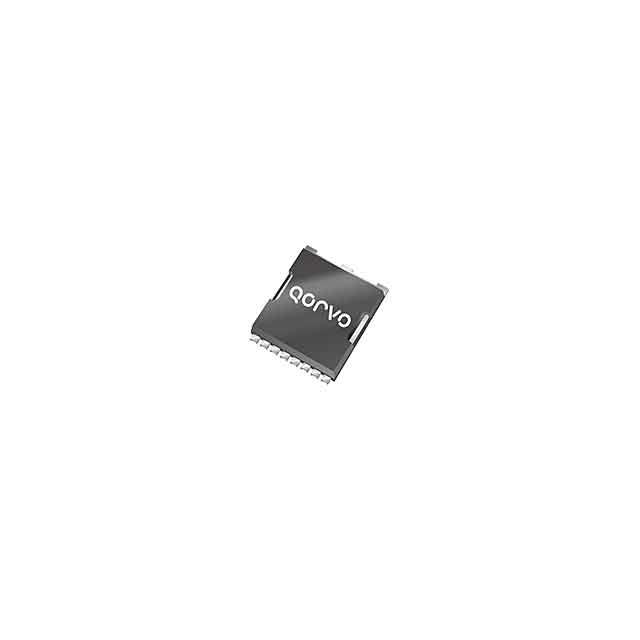

UJ4SC075008L8S
SICFET N-CH 750V 106A TOLLManufacturer: Qorvo
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 750 V 106A (Tc) 600W (Tc) Surface Mount TOLL
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiCFET (Cascode SiCJFET) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 106A (Tc) |
| Rds On (Max) @ Id, Vgs | 11.4mOhm @ 70A, 12V |
| FET Feature | - |
| Power Dissipation (Max) | 600W (Tc) |
| Vgs(th) (Max) @ Id | 5.5V @ 10mA |
| Supplier Device Package | TOLL |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 750 V |
| Gate Charge (Qg) (Max) @ Vgs | 75 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3340 pF @ 400 V |
