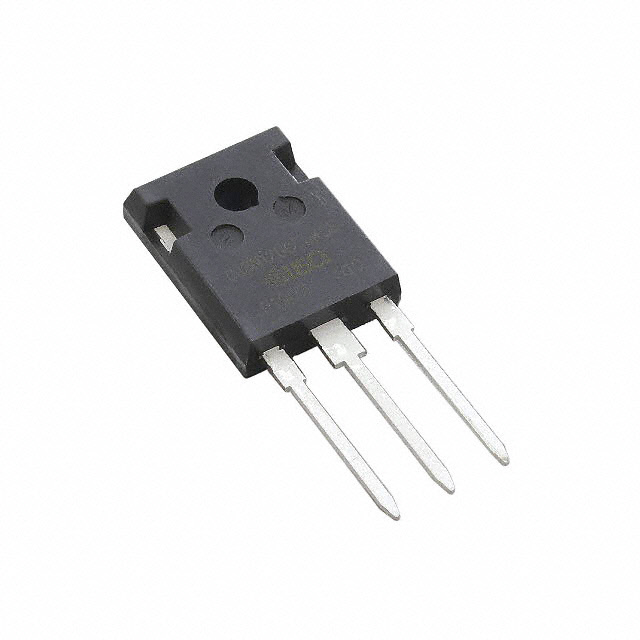

UJ3N120070K3S
JFET N-CH 1200V 33.5A TO247-3Manufacturer: Qorvo
Categories: JFETs
Quality Control: Learn More
Qorvo UJ3N120070K3S is an N-Channel JFET designed for high voltage applications. This component offers a drain-to-source breakdown voltage of 1200 V and a continuous drain current (Id) capability of up to 33.5 A. The device features a low on-resistance of 90 mOhms, facilitating efficient power handling with a maximum power dissipation of 254 W. Its high input capacitance (Ciss) is rated at 985 pF at 100 V. The UJ3N120070K3S is housed in a TO-247-3 package, suitable for through-hole mounting and operating across an extended temperature range of -55°C to 175°C. This component finds application in power conversion, motor control, and industrial power systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 38 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 985pF @ 100V |
| Voltage - Breakdown (V(BR)GSS) | 1200 V |
| Current Drain (Id) - Max | 33.5 A |
| Supplier Device Package | TO-247-3 |
| Drain to Source Voltage (Vdss) | 1200 V |
| Power - Max | 254 W |
| Resistance - RDS(On) | 90 mOhms |
Request a Quote
Clients Also Buy
UF3N170400B7S
JFET N-CH 1.7KV 6.8A D2PAK-7

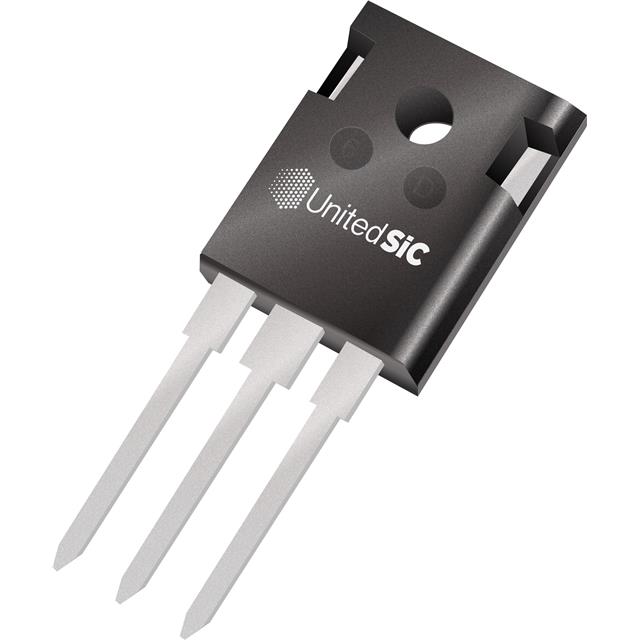

UJ3N120065K3S
JFET N-CH 1.2KV 34A TO247-3

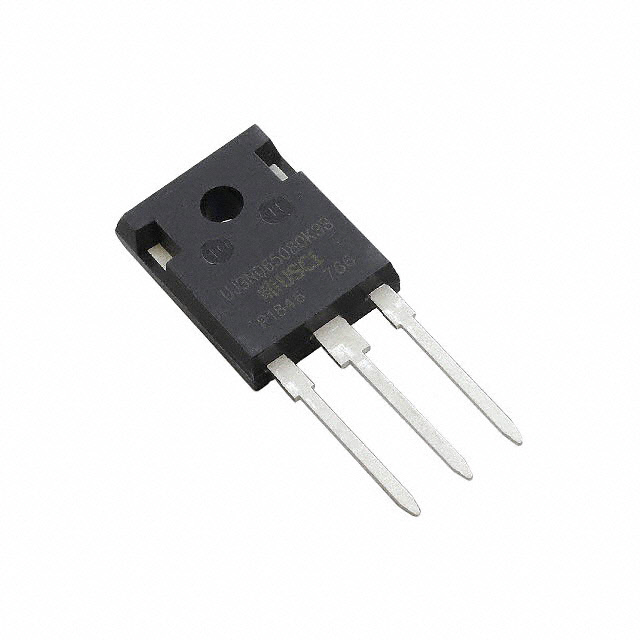

UJ3N065080K3S
