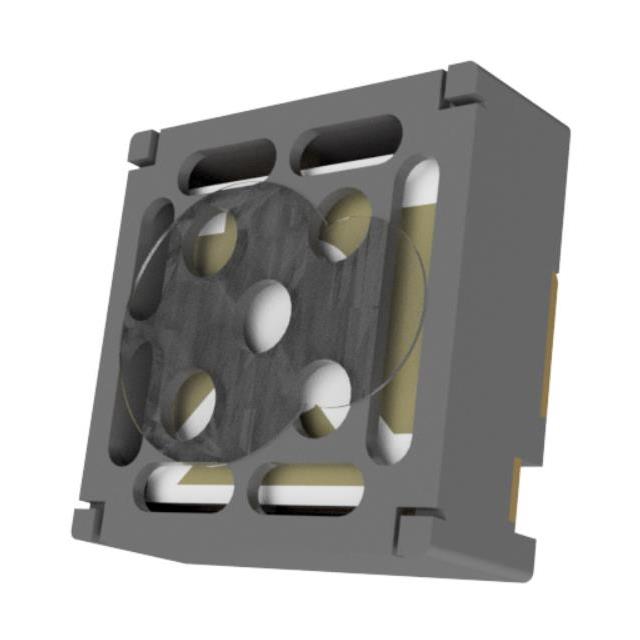

SMI-1324-TW-5V-2-R-T/R
BUZZER MAGNETIC 5V 12.8X12.8 SMDManufacturer: PUI Audio, Inc.
Categories: Alarms, Buzzers, and Sirens
Quality Control: Learn More
Buzzers Indicator, Internally Driven Electromechanical/Magnetic 5 V 30mA 2.4kHz 88dB @ 5V, 10cm Surface Mount Solder Pads
Additional Information
Series: SMIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Size / Dimension | 0.504"" L x 0.504"" W (12.80mm x 12.80mm) |
| Mounting Type | Surface Mount |
| Frequency | 2.4kHz |
| Operating Temperature | -40°C ~ 85°C |
| Sound Pressure Level (SPL) | 88dB @ 5V, 10cm |
| Duration | - |
| Current - Supply | 30mA |
| Input Type | DC |
| Operating Mode | Single Tone |
| Voltage Range | 4 ~ 7V |
| Technology | Electromechanical/Magnetic |
| Termination | Solder Pads |
| Approval Agency | - |
| Ratings | - |
| Port Location | Top |
| Driver Circuitry | Indicator, Internally Driven |
| Height - Seated (Max) | 0.299"" (7.60mm) |
| Voltage - Rated | 5 V |
Request a Quote
Clients Also Buy
X-2629-TWT-R
BUZZER PIEZO 12V 25MM TH

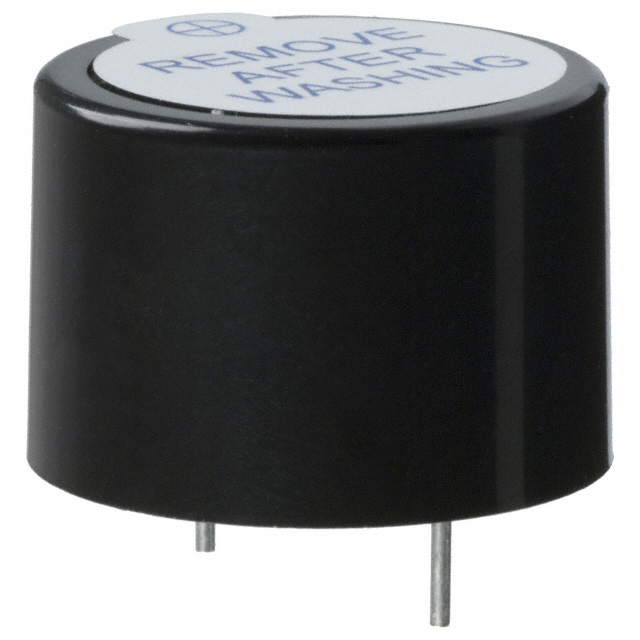

AI-2429-TWT-R
BUZZER PIEZO 12V 23.8MM TH

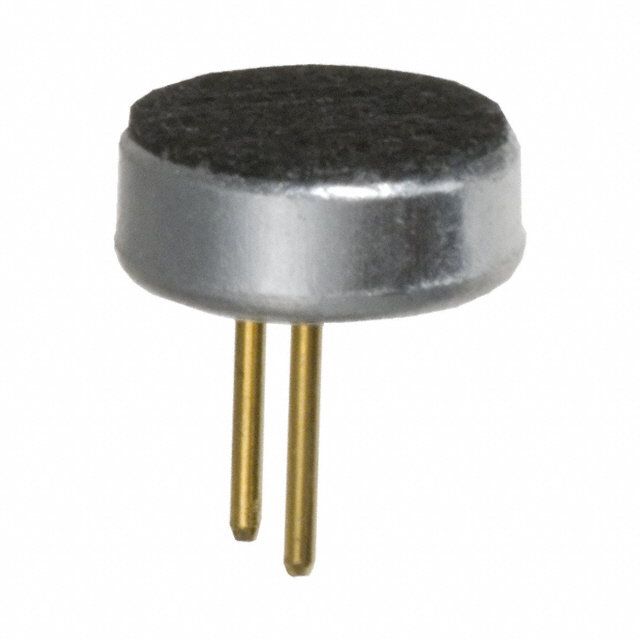

TOM-1545P-R
