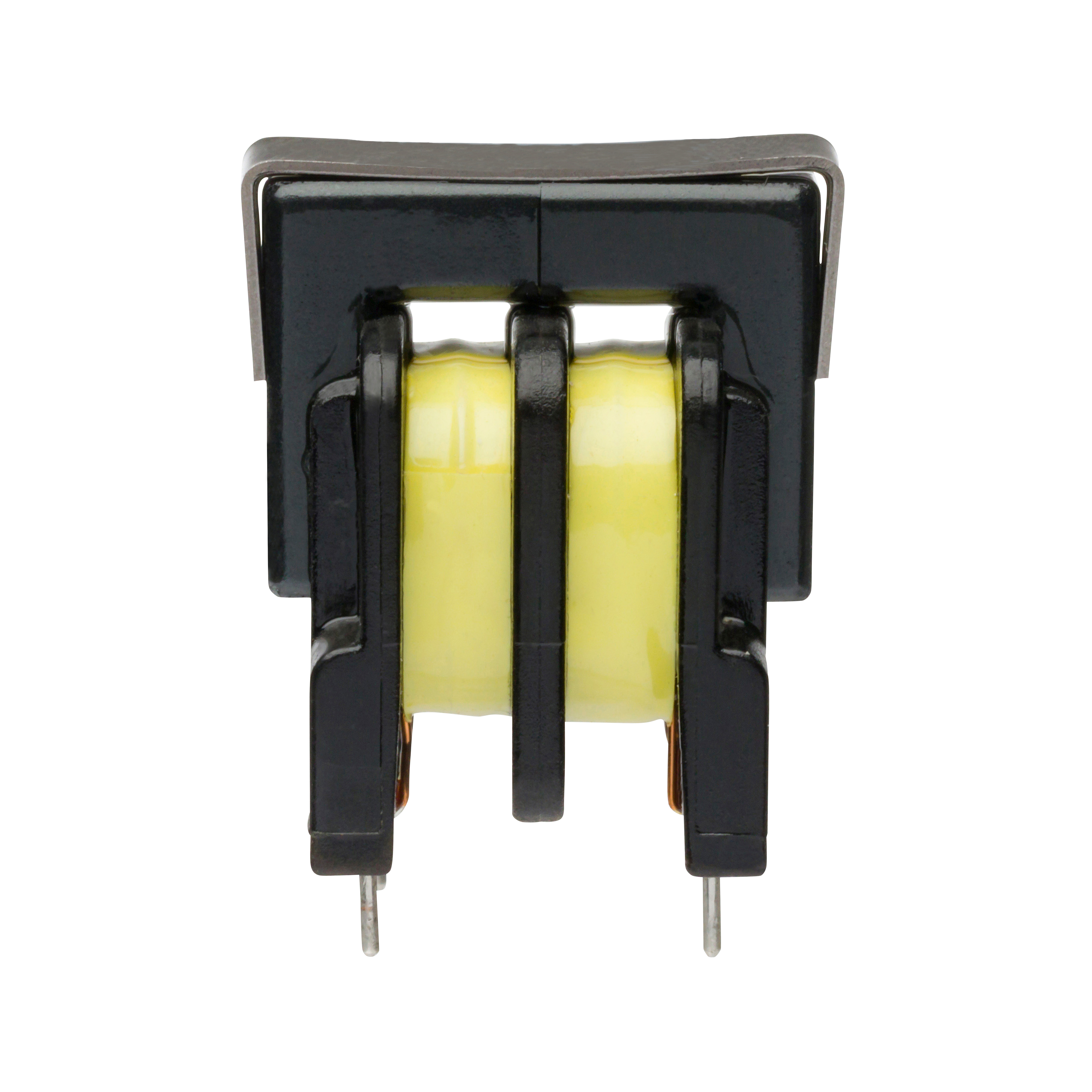

PMCU-0220
CMC 500MA 2LN THManufacturer: Premier Magnetics
Categories: Common Mode Chokes
Quality Control: Learn More
22 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.2Ohm
Additional Information
Series: PMCURoHS Status: Request inventory verificationManufacturer Lead Time: Product Status: ActivePackaging: Tape & Box (TB)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Box (TB) |
| Filter Type | Power Line |
| Size / Dimension | 0.725"" L x 0.650"" W (18.40mm x 16.50mm) |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 80°C |
| Height (Max) | 0.854"" (21.70mm) |
| Voltage Rating - AC | 250V |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 1.2Ohm |
| Inductance @ Frequency | 22 mH @ 1 kHz |
Request a Quote
Clients Also Buy
B82793C0475N265
CMC 4.7MH 400MA 2LN SMD AEC-Q200
DLW32SH101XF2L
CMC 100UH 115MA 2LN SMD AEC-Q200

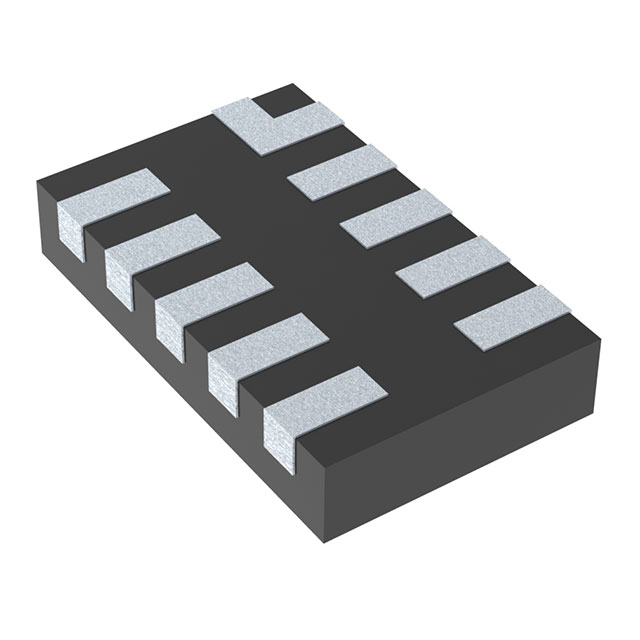

EMI8142MUTAG
