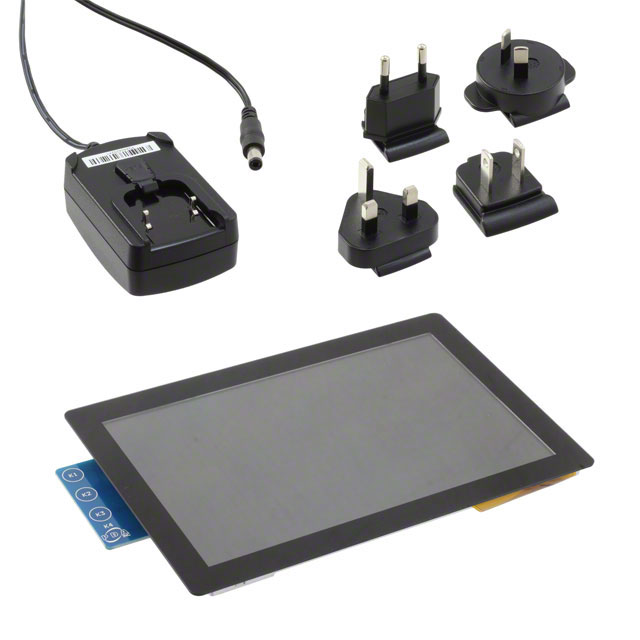

90-00036-A0
GRAPHIC DISPLAY TFT RGB 7Manufacturer: Precision Design Associates, Inc
Categories: LCD, OLED, Graphic
Quality Control: Learn More
Precision Design Associates, Inc. presents the 90-00036-A0, a 7-inch (177.80mm) Transmissive TFT Color LCD module featuring WVGA resolution (800 x 480 pixels). This graphic display module utilizes an 18-bit RGB parallel interface for robust color reproduction with Red, Green, and Blue (RGB) graphics. It incorporates a capacitive touchscreen for interactive functionality and is illuminated by a white LED backlight for optimal visibility. The viewing area measures 152.40mm W x 91.44mm H. This component is suitable for applications within the industrial automation and medical device sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | TFT - Color |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel, 18-Bit (RGB) |
| Viewing Area | 152.40mm W x 91.44mm H |
| Dot Pixels | 800 x 480 (WVGA) |
| Diagonal Screen Size | 7"" (177.80mm) |
| Background Color | - |
| Graphics Color | Red, Green, Blue (RGB) |
| Touchscreen | Capacitive |
Request a Quote
Clients Also Buy

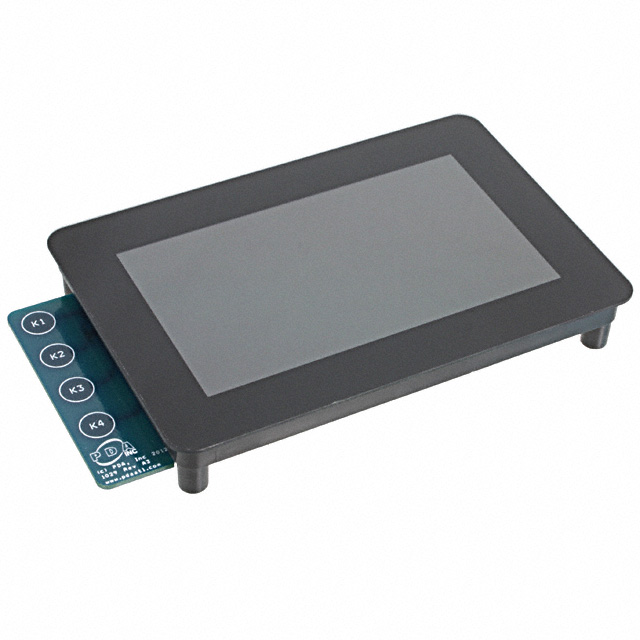

90-00002-A0
GRAPHIC DISPLAY TFT RGB 4.3

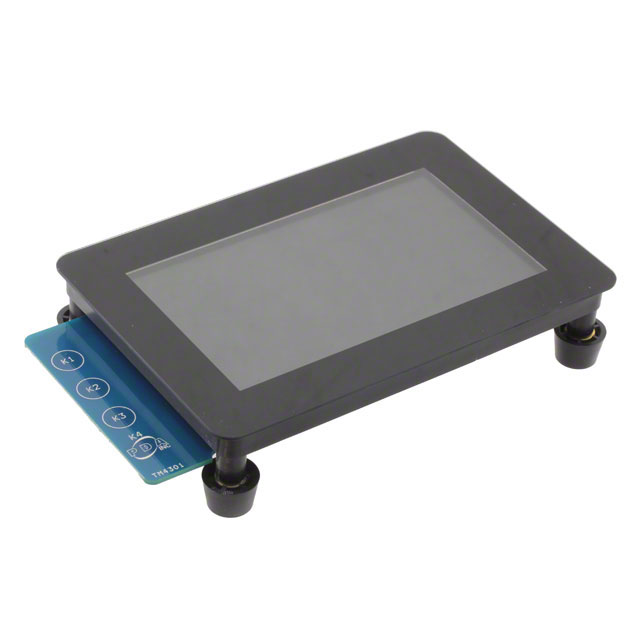

90-00002-C0
