R9G01222XX

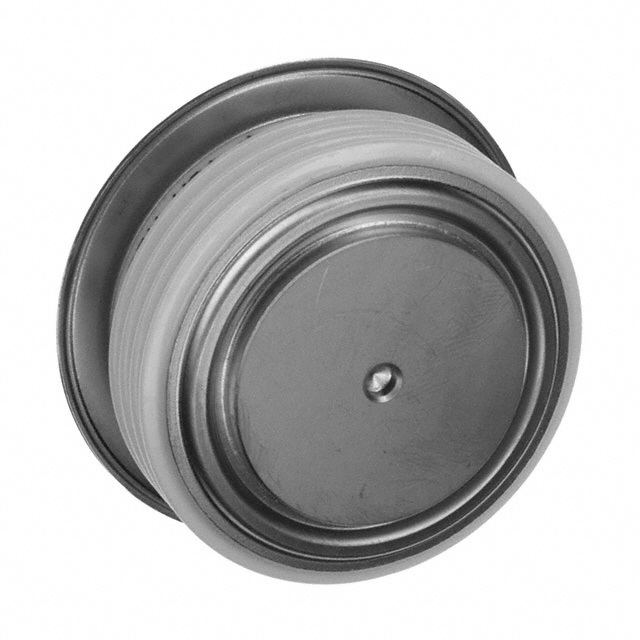

DIODE GP 1.2KV 2200A DO200ABManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More
Powerex Inc. R9G01222XX is a high-current, standard recovery diode designed for demanding power applications. This component features a robust DO-200AB, B-PUK package for clamp-on mounting, facilitating efficient thermal management. With a maximum DC reverse voltage of 1200 V and an average rectified forward current handling capability of 2200 A, it is suitable for high-power rectification and power conditioning circuits. The diode exhibits a forward voltage drop of 1.1 V at 1500 A and a reverse leakage current of 150 mA at its maximum reverse voltage. Its standard recovery speed, characterized by a reverse recovery time of 15 µs, makes it appropriate for applications where fast switching is not the primary requirement. This diode is commonly utilized in industrial power supplies, motor drives, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-200AB, B-PUK |
| Mounting Type | Clamp On |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 µs |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 2200A |
| Supplier Device Package | DO-200AB, B-PUK |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1500 A |
| Current - Reverse Leakage @ Vr | 150 mA @ 1200 V |
