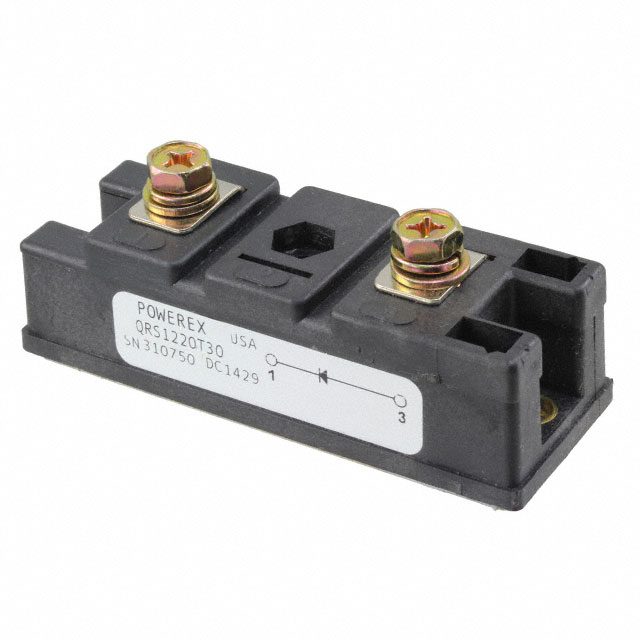

QRS1220T30
DIODE GEN PURP 1.2KV 127A MODULEManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More
Powerex Inc. QRS1220T30 is a high-performance general-purpose diode with a 1200V reverse voltage rating and a 127A average rectified forward current. This chassis-mount module features a fast recovery time of 250 ns, making it suitable for demanding applications. The diode exhibits a maximum forward voltage of 3.5V at 200A and a reverse leakage current of 1 mA at its maximum reverse voltage. Its robust construction and performance characteristics position it for use in power supplies, motor drives, and industrial control systems. The QRS1220T30 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 250 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 127A |
| Supplier Device Package | Module |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 3.5 V @ 200 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 1200 V |
