CS241250
DIODE GP 1.2KV 50A POW-R-BLOKManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More

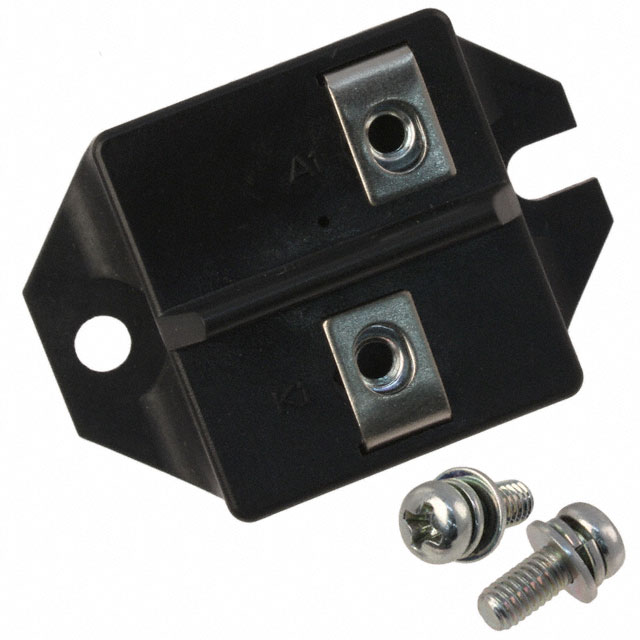

Powerex Inc. CS241250 is a single, standard recovery diode with a 1200V reverse voltage rating and an average rectified current capability of 50A. This diode features a forward voltage drop of 1.5V at 50A and a reverse leakage of 10mA at 600V. The CS241250 is housed in a POW-R-BLOK™ module package, designed for chassis mounting. Its reverse recovery time is specified at 800 ns. This component is suitable for applications in industrial power control, motor drives, and power supplies.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 800 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 50A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 50 A |
| Current - Reverse Leakage @ Vr | 10 mA @ 600 V |
Request a Quote
