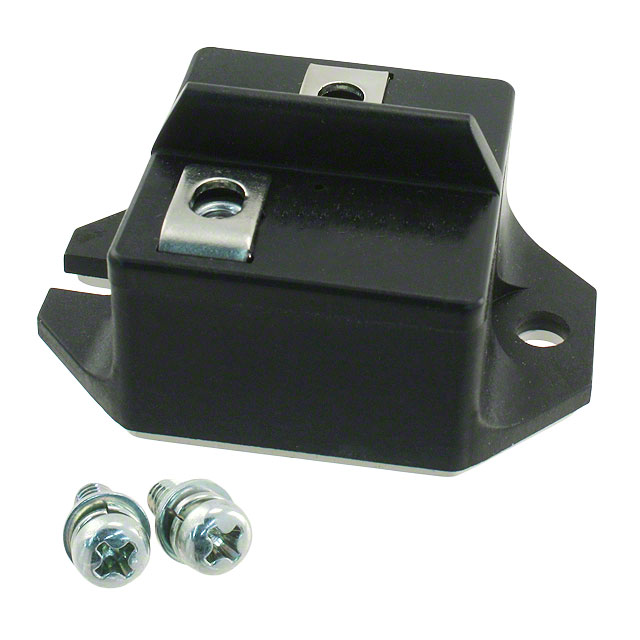

CS241210
DIODE GP 1.2KV 100A POW-R-BLOKManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More
The Powerex Inc. CS241210 is a general-purpose diode with a maximum repetitive peak reverse voltage of 1200V and an average rectified forward current of 100A. This POW-R-BLOK™ module features a chassis mount for efficient thermal management. The diode exhibits a forward voltage drop of 1.5V at its rated 100A current. With a reverse leakage current of 20 mA at 1200V and a standard recovery time of 800ns, this component is suitable for applications requiring robust power rectification. Typical industries utilizing this type of component include industrial motor drives, power supplies, and welding equipment. The CS241210 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 800 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 1200 V |
