CS240650
DIODE GP 600V 50A POW-R-BLOKManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More

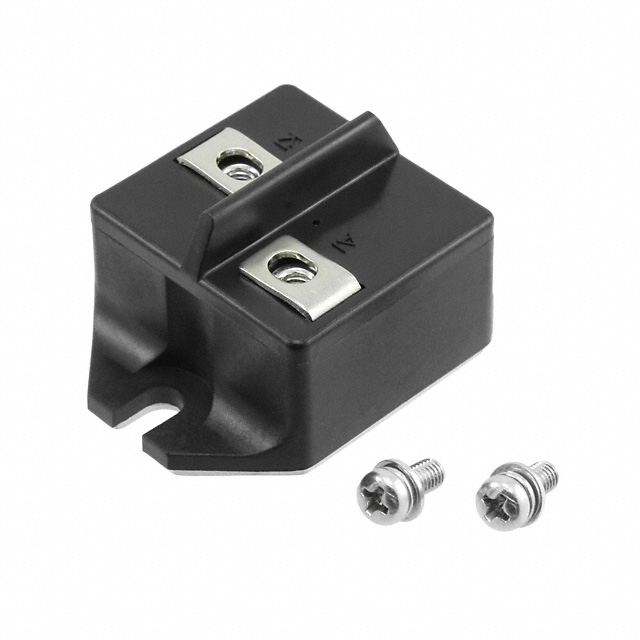

The Powerex Inc. CS240650 is a General Purpose Diode with a 600V reverse voltage rating and an average rectified current capability of 50A. This component utilizes Standard recovery technology, characterized by a reverse recovery time (trr) of 800 ns and a forward voltage drop (Vf) of 1.5V at 50A. The device exhibits a reverse leakage current of 10 mA at its maximum reverse voltage. Designed for robust thermal management, it features a Chassis Mount configuration within the POW-R-BLOK™ Module package. This diode is suitable for applications in power electronics, industrial motor control, and high-power switching systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 800 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 50A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 50 A |
| Current - Reverse Leakage @ Vr | 10 mA @ 600 V |
