CS240610

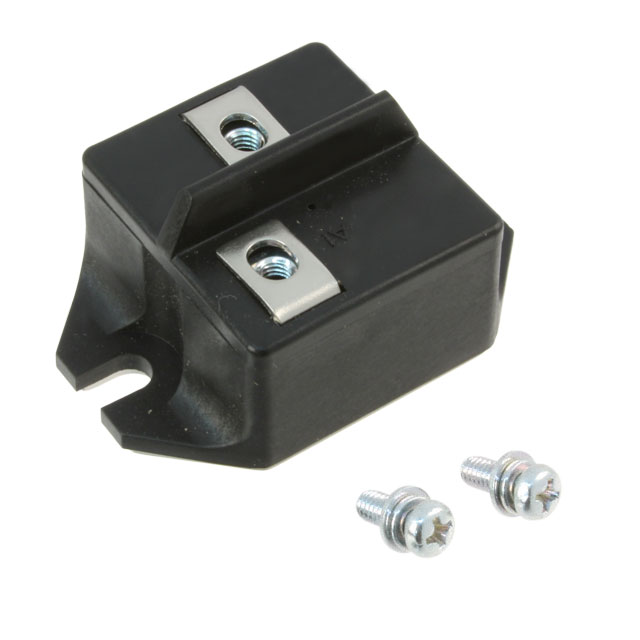

DIODE GP 600V 100A POW-R-BLOKManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More
Powerex Inc. CS240610 is a 600V, 100A general-purpose diode designed for robust power applications. This chassis mount module, utilizing standard recovery technology, features a maximum forward voltage of 1.5V at 100A and a reverse leakage of 20mA at its peak reverse voltage. The POW-R-BLOK™ module package ensures efficient thermal management and ease of integration. With a typical reverse recovery time of 800 ns, this component is suitable for power conversion, motor control, and industrial power supply applications where reliable high-current rectification is critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | POW-R-BLOK™ Module |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 800 ns |
| Technology | Standard |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 100A |
| Supplier Device Package | POW-R-BLOK™ Module |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 100 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 600 V |
