A180RB
DIODE GP REV 200V 150A DO205AAManufacturer: Powerex Inc.
Categories: Single Diodes
Quality Control: Learn More
Powerex Inc. A180RB is a general-purpose rectifier diode with a maximum repetitive reverse voltage of 200V and an average forward current rating of 150A. This component features a forward voltage drop of 1.3V at 150A and a reverse leakage current of 20mA at 200V. Designed for standard recovery applications, its switching speed is greater than 500ns. The A180RB is housed in a DO-205AA (DO-8) package, facilitating chassis or stud mounting for efficient thermal management. Operating across a temperature range of -40°C to 200°C, this diode is suitable for power supply, motor control, and welding equipment applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-205AA, DO-8, Stud |
| Mounting Type | Chassis, Stud Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard, Reverse Polarity |
| Capacitance @ Vr, F | - |
| Current - Average Rectified (Io) | 150A |
| Supplier Device Package | DO-205AA (DO-8) |
| Operating Temperature - Junction | -40°C ~ 200°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 150 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 200 V |
Request a Quote
Clients Also Buy
R6001030XXYA
DIODE GP 2.6KV 300A DO205AB

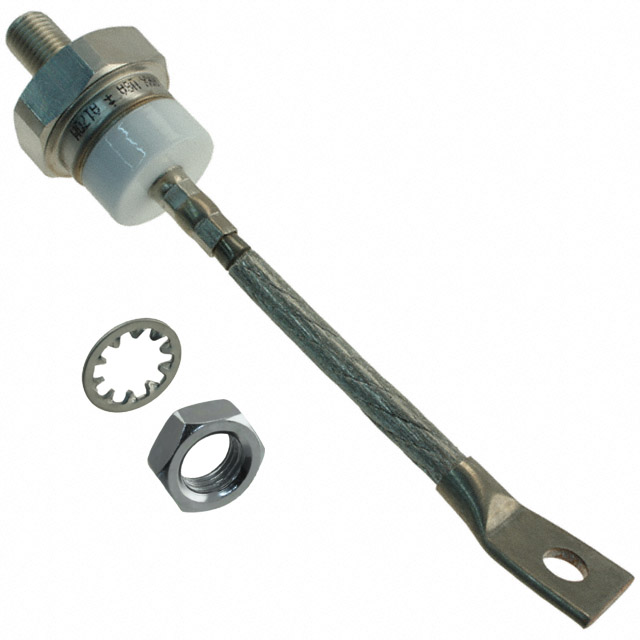

A170M
