T600121804BT
SCR 1.2KV 275A TO209ABManufacturer: Powerex Inc.
Categories: SCRs
Quality Control: Learn More

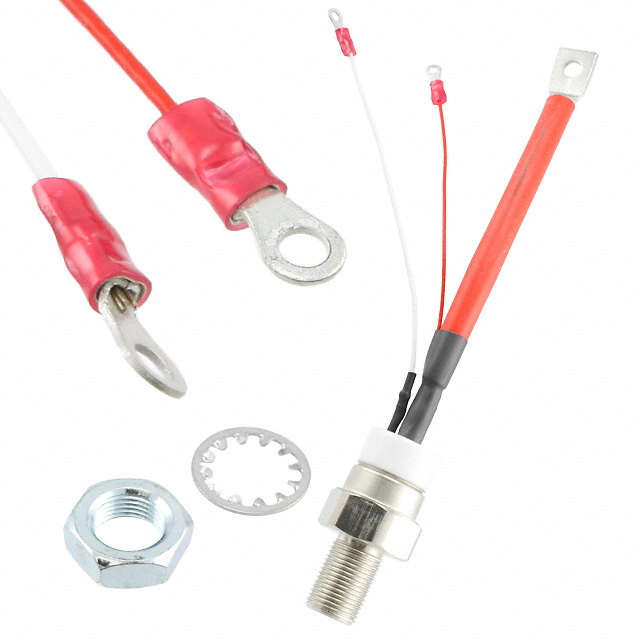

SCR 1.2 kV 275 A Standard Recovery Chassis, Stud Mount
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-209AB, TO-93-4, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5000A, 5500A |
| Current - On State (It (AV)) (Max) | 175 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - On State (Vtm) (Max) | 1.55 V |
| Current - Off State (Max) | 25 mA |
| Supplier Device Package | - |
| Current - On State (It (RMS)) (Max) | 275 A |
| Voltage - Off State | 1.2 kV |
