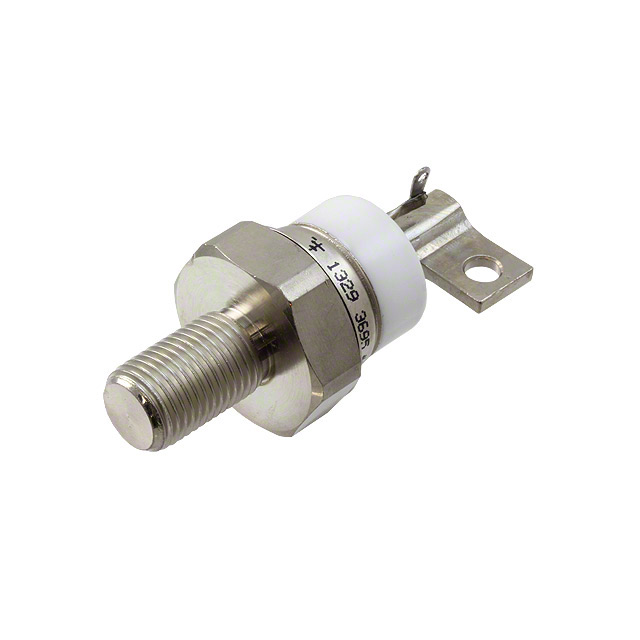

Powerex Inc. C152S is a standard recovery SCR with a 700V repetitive peak off-state voltage and a 100A RMS on-state current rating. This stud-mount device, packaged in a TO-83 case, features a maximum on-state voltage drop of 2.6V. The gate trigger current is rated at 150mA maximum with a 3V maximum gate trigger voltage. It exhibits a holding current of 500mA maximum and a low off-state leakage current of 10mA maximum. Non-repetitive surge current capability reaches 1400A at 50Hz and 1500A at 60Hz. Operating temperature range is -40°C to 125°C. This component is suitable for applications in power control, industrial motor drives, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-208AD, TO-83-3, Stud |
| Mounting Type | Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1400A, 1500A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - On State (Vtm) (Max) | 2.6 V |
| Current - Off State (Max) | 10 mA |
| Current - On State (It (RMS)) (Max) | 100 A |
| Voltage - Off State | 700 V |
