Powerex Inc. 2N1912 is a standard recovery SCR with a voltage rating of 150V and an RMS on-state current of 110A. This chassis mount, stud mount device features a TO-209AC package. Key parameters include a maximum gate trigger current (Igt) of 70mA and a maximum gate trigger voltage (Vgt) of 3V. The on-state voltage drop (Vtm) is specified at 2.3V maximum. It offers a non-repetitive surge current of 1000A at 60Hz. The operating temperature range is -40°C to 125°C. This component is suitable for applications in industrial power control and motor drives.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-209AC, TO-94-4, Stud |
| Mounting Type | Chassis, Stud Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Gate Trigger (Igt) (Max) | 70 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1000A @ 60Hz |
| Current - On State (It (AV)) (Max) | 70 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Voltage - On State (Vtm) (Max) | 2.3 V |
| Current - Off State (Max) | 20 mA |
| Supplier Device Package | - |
| Current - On State (It (RMS)) (Max) | 110 A |
| Voltage - Off State | 150 V |
Request a Quote
Clients Also Buy
2N1911
SCR 100V 110A TO94
C45PB
SCR 1200V 50A TO83

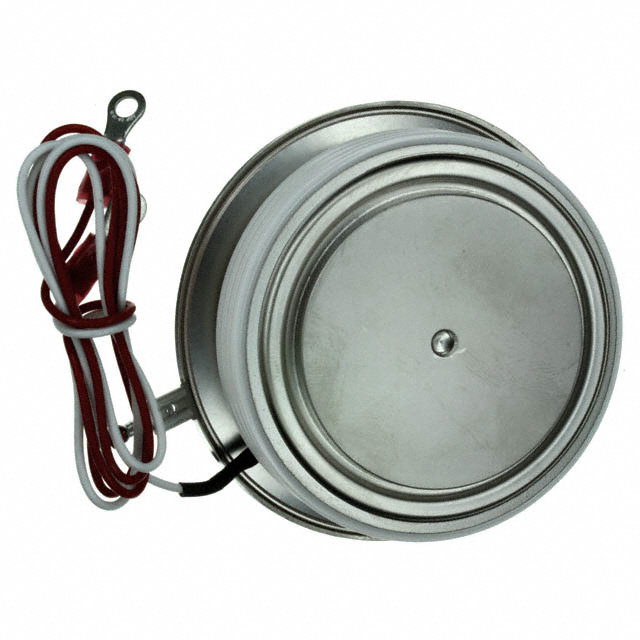

C440PB
