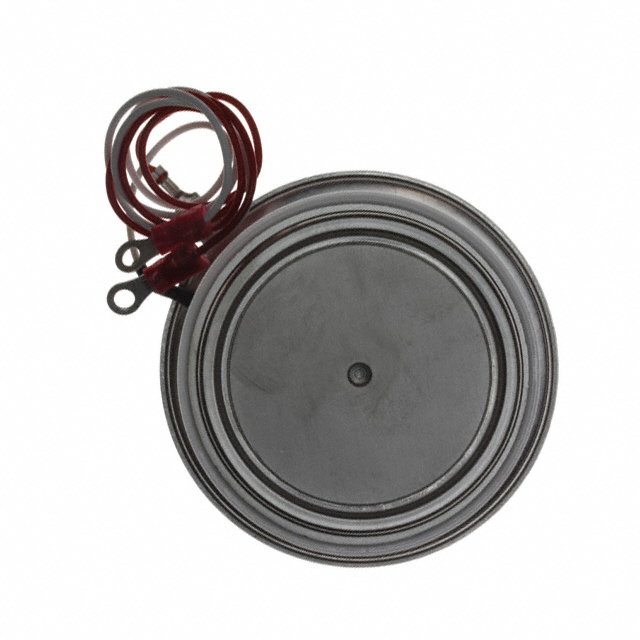

T9S0162003DH
SCR PHASE CTRL MOD 1600V 2000AManufacturer: Powerex Inc.
Categories: SCRs - Modules
Quality Control: Learn More
Powerex Inc. SCR Module, Part Number T9S0162003DH, represents a robust solution for demanding power control applications. This single SCR module features a high blocking voltage of 1.6 kV and a substantial on-state current rating of 2000 A (average) and 3142 A (RMS). Designed for chassis mounting within a TO-200 variation package, it offers excellent thermal performance. Key electrical characteristics include a gate trigger current (Igt) of 200 mA and a gate trigger voltage (Vgt) of 3 V, enabling precise control. The module is built to withstand significant surge currents, with non-repetitive surge ratings of 25456 A at 50 Hz and 27000 A at 60 Hz. This component is commonly employed in industrial motor control, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-200 Variation |
| Mounting Type | Chassis Mount |
| Operating Temperature | - |
| Structure | Single |
| Current - Gate Trigger (Igt) (Max) | 200 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25456A, 27000A |
| Number of SCRs, Diodes | 1 SCR |
| Current - On State (It (AV)) (Max) | 2000 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - On State (It (RMS)) (Max) | 3142 A |
| Voltage - Off State | 1.6 kV |
